Overview
The AD9461BSVZ is a 16-bit, monolithic, analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is optimized for high-performance applications, featuring an on-chip track-and-hold circuit and operating up to 130 million samples per second (MSPS). It is designed for ease of use and requires minimal external components, making it suitable for various high-speed data acquisition tasks. The ADC supports both CMOS and LVDS output modes and is powered by 3.3 V and 5.0 V supplies.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Resolution | 16 bits | |||
| Maximum Conversion Rate | 130 | MSPS | ||
| Minimum Conversion Rate | 1 | MSPS | ||
| Clock Period | 7.7 | ns | ||
| Clock Pulse Width High | 3.1 | ns | ||
| Clock Pulse Width Low | 3.1 | ns | ||
| Output Propagation Delay—CMOS | 3.35 | ns | ||
| Output Propagation Delay—LVDS | 2.3 | 4.8 | ns | |
| Pipeline Delay (Latency) | 13 Cycles | |||
| Analog Bandwidth | 615 MHz | |||
| Power Supplies | 3.3 V, 5.0 V | |||
Key Features
- High-speed operation up to 130 MSPS
- 16-bit resolution with high signal-to-noise ratio (SNR)
- On-chip track-and-hold circuit
- CMOS and LVDS output modes (ANSI-644 compatible)
- No external reference or driver components required for many applications
- Selectable operating conditions: input range, data format select, and output data mode

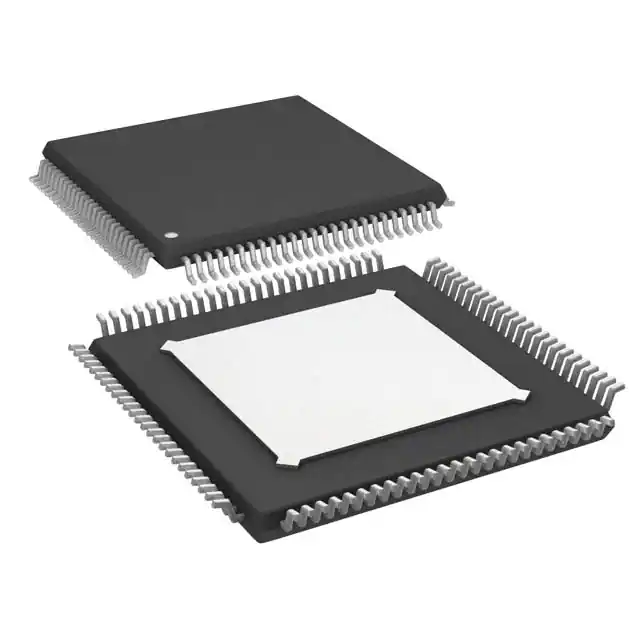

- Pb-free, 100-lead, surface-mount, plastic package (100-lead TQFP_EP)
Applications
- MRI receivers
- Multicarrier, multimode, cellular receivers
- Antenna array positioning
- Power amplifier linearization
- Broadband wireless systems
- Radar systems
- Infrared imaging
- Communications instrumentation
Q & A
- What is the maximum conversion rate of the AD9461BSVZ?
The maximum conversion rate of the AD9461BSVZ is 130 MSPS.
- What are the supported output modes for the AD9461BSVZ?
The AD9461BSVZ supports both CMOS and LVDS output modes.
- What is the resolution of the AD9461BSVZ?
The resolution of the AD9461BSVZ is 16 bits.
- Does the AD9461BSVZ require external reference or driver components?
No, the AD9461BSVZ does not require external reference or driver components for many applications.
- What are the power supply requirements for the AD9461BSVZ?
The AD9461BSVZ requires 3.3 V and 5.0 V power supplies.
- What is the analog bandwidth of the AD9461BSVZ?
The analog bandwidth of the AD9461BSVZ is 615 MHz.
- What is the pipeline delay (latency) of the AD9461BSVZ?
The pipeline delay (latency) of the AD9461BSVZ is 13 cycles.
- What are some common applications of the AD9461BSVZ?
Common applications include MRI receivers, cellular receivers, antenna array positioning, power amplifier linearization, broadband wireless systems, radar systems, infrared imaging, and communications instrumentation.
- What type of package does the AD9461BSVZ come in?
The AD9461BSVZ comes in a Pb-free, 100-lead, surface-mount, plastic package (100-lead TQFP_EP).
- Is the AD9461BSVZ Pb-free?
