Overview
The AD9432BSQ-80 is a 12-bit, monolithic sampling analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is optimized for high-speed conversion and ease of use, making it suitable for a variety of high-performance applications. The AD9432 operates up to a 105 MSPS conversion rate and features outstanding dynamic performance over its full operating range. It requires only a single 5.0 V power supply and a 105 MHz encode clock for full performance operation, eliminating the need for external reference or driver components in many applications.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Conversion Rate | Up to 105 MSPS |
| Analog Input Range | 2.0 V p-p (differential) |
| Supply Voltage | 5.0 V |
| Power Dissipation | 850 mW typical at 105 MSPS |
| Analog Bandwidth | 500 MHz |
| SNR (Signal-to-Noise Ratio) | 67 dB @ 49 MHz AIN at 105 MSPS |
| SFDR (Spurious-Free Dynamic Range) | 80 dB @ 49 MHz AIN at 105 MSPS |
| Output Format | Twos complement, TTL-/CMOS-compatible |

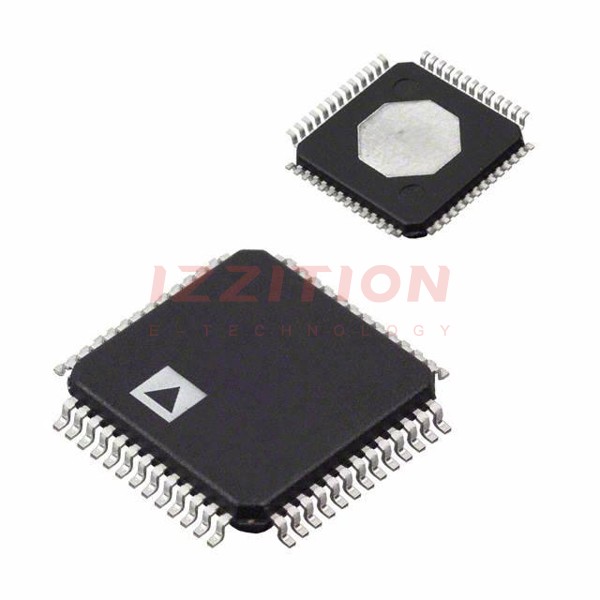

| Package Type | LQFP-52-PQ4 (10x10) |
Key Features
- On-chip reference and track-and-hold circuit
- On-chip input buffer with self-biased differential input stage
- Single 5.0 V power supply operation
- TTL-/CMOS-compatible digital outputs with separate output power supply pin for 3.3 V logic
- Differential or single-ended encode input compatibility
- Advanced BiCMOS process fabrication
- Calibrated DNL transitional errors to a typical accuracy of 0.25 LSB or less
Applications
- Communications: Base stations and zero-IF subsystems
- Wireless local loop (WLL)
- Local multipoint distribution service (LMDS)
- HDTV broadcast cameras and film scanners
Q & A
- What is the resolution of the AD9432BSQ-80 ADC?
The AD9432BSQ-80 has a resolution of 12 bits. - What is the maximum conversion rate of the AD9432BSQ-80?
The maximum conversion rate is up to 105 MSPS. - What is the analog input range of the AD9432BSQ-80?
The analog input range is 2.0 V p-p (differential). - What is the power supply requirement for the AD9432BSQ-80?
The device requires a single 5.0 V power supply. - What is the typical power dissipation of the AD9432BSQ-80 at 105 MSPS?
The typical power dissipation is 850 mW at 105 MSPS. - What is the analog bandwidth of the AD9432BSQ-80?
The analog bandwidth is 500 MHz. - What is the SNR of the AD9432BSQ-80 at 49 MHz AIN and 105 MSPS?
The SNR is 67 dB at 49 MHz AIN and 105 MSPS. - What is the SFDR of the AD9432BSQ-80 at 49 MHz AIN and 105 MSPS?
The SFDR is 80 dB at 49 MHz AIN and 105 MSPS. - What type of output format does the AD9432BSQ-80 use?
The output format is twos complement, and the outputs are TTL-/CMOS-compatible. - In what package type is the AD9432BSQ-80 available?
The device is available in an LQFP-52-PQ4 (10x10) package.
