Overview

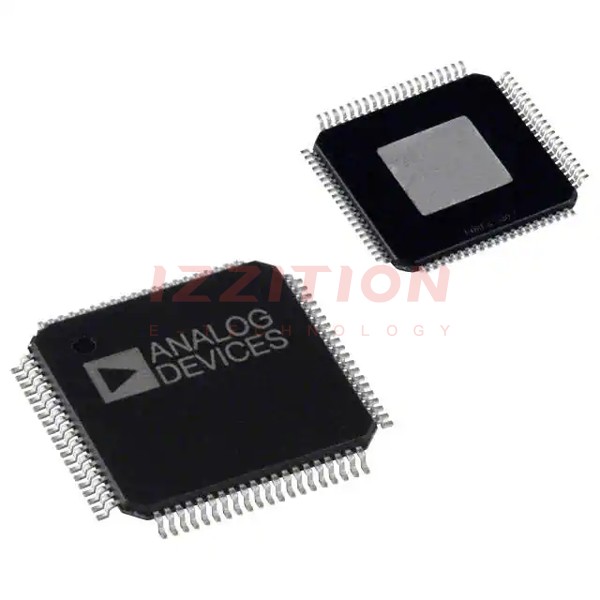

The AD9410BSVZ is a 10-bit monolithic sampling analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is optimized for high-speed conversion and ease of use, featuring an on-chip track-and-hold circuit. It operates at a conversion rate of up to 210 MSPS, offering outstanding dynamic performance across its full operating range. The ADC requires both 5.0 V and 3.3 V power supplies and supports a differential clock input up to 210 MHz. The digital outputs are TTL-/CMOS-compatible, and the device is fabricated on an advanced BiCMOS process, available in an 80-lead thin quad flat package (TQFP) with an exposed pad, suitable for the industrial temperature range (−40°C to +85°C).
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Resolution | 10 | - | - | Bits |
| Differential Nonlinearity (25°C) | -1.0 | ±0.5 | +1.25 | LSB |
| Integral Nonlinearity (25°C) | -2.5 | ±1.65 | +2.5 | LSB |
| Power Supply (VDD, VD, VCC) | - | 3.3 V, 5.0 V | - | V |
| Clock Input Frequency | - | 210 MHz | - | MHz |
| Power Consumption (Typical at 210 MSPS) | - | 2.1 W | - | W |
| Analog Input Range | - | 1.5 V p-p differential | - | V |
| Output Data Format | - | Binary or Two's Complement | - | - |
| Output Data Rate (Demultiplexed) | - | 105 MSPS | - | MSPS |
Key Features
- High resolution at high speed: Supports conversion rates up to 210 MSPS with outstanding dynamic performance.
- Demultiplexed output: Output data is decimated by two and provided on two data ports for ease of data transport.
- On-chip reference and track-and-hold circuit: No external reference or driver components are required for many applications.
- TTL-/CMOS-compatible digital outputs: Supports interfacing with 3.3 V logic and separate output power supply pins.
- Data sync function and output clock: Simplifies interfacing to external logic and timing-dependent applications.
- Flexible output data bus timing: Selectable for parallel or interleaved mode.
Applications
- Communications and radars
- Local multipoint distribution services (LMDS)
- High-end imaging systems and projectors
- Cable reverse paths
- Point-to-point radio links
Q & A
- What is the resolution of the AD9410BSVZ ADC?
The AD9410BSVZ has a resolution of 10 bits. - What is the maximum conversion rate of the AD9410BSVZ?
The maximum conversion rate is up to 210 MSPS. - What are the power supply requirements for the AD9410BSVZ?
The device requires both 5.0 V and 3.3 V power supplies. - What is the typical power consumption of the AD9410BSVZ at 210 MSPS?
The typical power consumption is 2.1 W. - What is the analog input range of the AD9410BSVZ?
The analog input range is 1.5 V p-p differential. - Does the AD9410BSVZ support demultiplexed output?
Yes, the output data is decimated by two and provided on two data ports. - What are the output data formats available for the AD9410BSVZ?
The output data formats available are binary or two's complement. - Is the AD9410BSVZ compatible with 3.3 V logic?
Yes, the digital outputs are TTL-/CMOS-compatible and support interfacing with 3.3 V logic. - What is the operating temperature range of the AD9410BSVZ?
The operating temperature range is −40°C to +85°C. - What package type is the AD9410BSVZ available in?
The device is available in an 80-lead thin quad flat package (TQFP) with an exposed pad.
