Overview
The AD9287BCPZRL7-100 is a high-speed analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for applications requiring fast and accurate multichannel analog-to-digital conversion. The AD9287BCPZRL7-100 features a quad-channel architecture, making it ideal for systems that need to process multiple analog signals simultaneously.

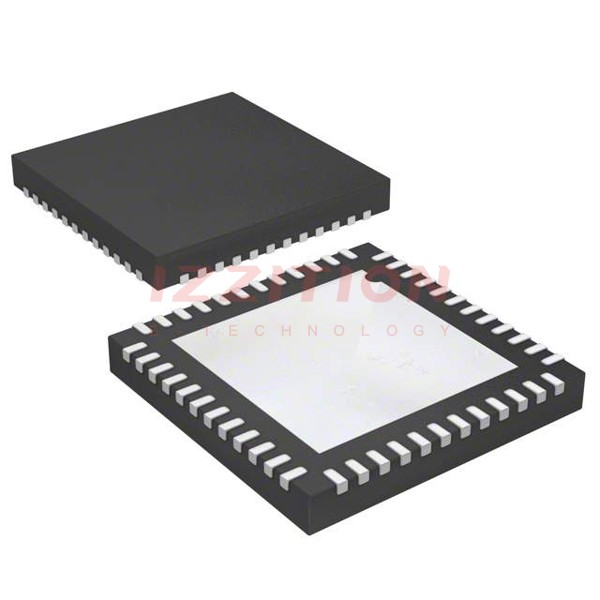

This ADC operates at a sampling rate of up to 100 million samples per second (MSPS) and has an 8-bit resolution. It is packaged in a 48-lead LFCSP (Lead Frame Chip Scale Package) and is compatible with supply voltages ranging from 2.7V to 3.6V for both analog and digital supplies.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | AD9287BCPZRL7-100 |
| Manufacturer | Analog Devices Inc. |
| Description | IC ADC 8BIT QUAD 100MSPS 48LFCSP |
| Package / Case | 48-LFCSP |
| Number of Bits | 8 |
| Number of A/D Converters | 4 |
| Sampling Rate (Per Second) | 100M |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7 V ~ 3.6 V |
| Voltage - Supply, Digital | 2.7 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Input Type | Differential |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Key Features
- High-Speed Operation: Sampling rate up to 100 MSPS.
- Quad-Channel Architecture: Four analog-to-digital converters for simultaneous sampling of multiple channels.
- 8-Bit Resolution: Provides accurate digital representation of analog signals.
- Compact Package: 48-lead LFCSP package, ideal for space-constrained applications.
- Flexible Supply Voltages: Compatible with 2.7V to 3.6V analog and digital supply voltages.
- Differential Inputs: Supports differential input signals for improved noise immunity.
- External and Internal Reference Options: Allows for flexibility in reference signal selection.
Applications
- Communications: Suitable for high-speed data conversion in communication systems.
- Industrial Automation: Used in industrial control and monitoring systems requiring fast and accurate data conversion.
- Instrumentation and Measurement: Ideal for precision measurement instruments and data acquisition systems.
- Aerospace and Defense: Applied in various defense and aerospace applications requiring high-speed data conversion.
- Motor and Power Control: Used in motor control and power management systems.
- Healthcare: Utilized in medical imaging and diagnostic equipment.
Q & A
- What is the sampling rate of the AD9287BCPZRL7-100?
The AD9287BCPZRL7-100 has a sampling rate of up to 100 million samples per second (MSPS).
- How many analog-to-digital converters does the AD9287BCPZRL7-100 have?
The AD9287BCPZRL7-100 features four analog-to-digital converters.
- What is the resolution of the AD9287BCPZRL7-100?
The AD9287BCPZRL7-100 has an 8-bit resolution.
- What type of package does the AD9287BCPZRL7-100 use?
The AD9287BCPZRL7-100 is packaged in a 48-lead LFCSP (Lead Frame Chip Scale Package).
- What are the compatible supply voltage ranges for the AD9287BCPZRL7-100?
The AD9287BCPZRL7-100 is compatible with supply voltages ranging from 2.7V to 3.6V for both analog and digital supplies.
- What is the operating temperature range of the AD9287BCPZRL7-100?
The operating temperature range of the AD9287BCPZRL7-100 is from -40°C to 85°C.
- Is the AD9287BCPZRL7-100 RoHS compliant?
Yes, the AD9287BCPZRL7-100 is lead-free and RoHS compliant.
- What type of input signals does the AD9287BCPZRL7-100 support?
The AD9287BCPZRL7-100 supports differential input signals.
- Can the AD9287BCPZRL7-100 use both external and internal reference signals?
Yes, the AD9287BCPZRL7-100 allows for both external and internal reference signal options.
- In what applications is the AD9287BCPZRL7-100 commonly used?
The AD9287BCPZRL7-100 is commonly used in communications, industrial automation, instrumentation and measurement, aerospace and defense, motor and power control, and healthcare applications.
