Overview

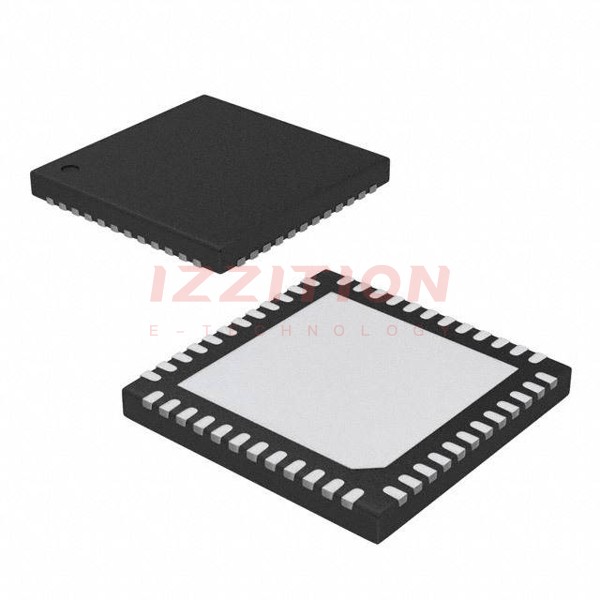

The AD9287ABCPZ-100 is a high-performance, 8-bit, 100 MSPS analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed to provide high-speed and low-power conversion, making it suitable for a variety of high-frequency signal processing applications. The AD9287 features a pipeline architecture and is available in a compact 48-lead LFCSP (Lead Frame Chip Scale Package) with dimensions of 7mm x 7mm x 0.85mm.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 8 bits |
| Sampling Rate | 100 MSPS |
| Package Type | 48-Lead LFCSP (7mm x 7mm x 0.85mm) |
| Power Supply | 1.8V (analog), 1.8V (digital) |
| Operating Temperature Range | -40°C to +85°C |
| SNR (Signal-to-Noise Ratio) | 48.5 dBFS at fIN = 70 MHz |
| SFDR (Spurious-Free Dynamic Range) | 70 dBc at fIN = 70 MHz |
Key Features
- High-speed 8-bit ADC with a sampling rate of 100 MSPS
- Pipeline architecture for high-performance signal conversion
- Low power consumption: 105 mW at 100 MSPS
- Compact 48-lead LFCSP package
- Dual 1.8V power supplies for analog and digital sections
- Wide operating temperature range: -40°C to +85°C
- High SNR and SFDR for accurate signal processing
Applications
- Wireless communication systems
- Radar and electronic warfare systems
- Medical imaging and diagnostics
- High-speed data acquisition systems
- Test and measurement equipment
Q & A
- What is the resolution of the AD9287ABCPZ-100 ADC?
The AD9287ABCPZ-100 has a resolution of 8 bits.
- What is the maximum sampling rate of the AD9287ABCPZ-100?
The maximum sampling rate is 100 MSPS.
- What type of package does the AD9287ABCPZ-100 come in?
The AD9287ABCPZ-100 comes in a 48-lead LFCSP package.
- What are the power supply requirements for the AD9287ABCPZ-100?
The AD9287ABCPZ-100 requires dual 1.8V power supplies for the analog and digital sections.
- What is the operating temperature range of the AD9287ABCPZ-100?
The operating temperature range is -40°C to +85°C.
- What is the typical power consumption of the AD9287ABCPZ-100 at 100 MSPS?
The typical power consumption is 105 mW at 100 MSPS.
- What are some common applications of the AD9287ABCPZ-100?
Common applications include wireless communication systems, radar and electronic warfare systems, medical imaging, high-speed data acquisition, and test and measurement equipment.
- How does the pipeline architecture benefit the AD9287ABCPZ-100?
The pipeline architecture allows for high-speed and high-performance signal conversion, making it suitable for applications requiring rapid and accurate data processing.
- What is the SNR of the AD9287ABCPZ-100 at an input frequency of 70 MHz?
The SNR is 48.5 dBFS at an input frequency of 70 MHz.
- What is the SFDR of the AD9287ABCPZ-100 at an input frequency of 70 MHz?
The SFDR is 70 dBc at an input frequency of 70 MHz.
