Overview
The AD9261BCPZRL7-10, manufactured by Analog Devices Inc., is a high-performance 16-bit analog-to-digital converter (ADC) based on a continuous time sigma-delta (Σ-Δ) architecture. This ADC is designed to achieve a dynamic range of 87 dB over a 10 MHz input bandwidth, making it suitable for applications requiring high precision and wide bandwidth. The device features a resistive input impedance, which simplifies the requirements for the driver amplifier, and a 32× oversampled fifth-order continuous time loop filter that significantly attenuates out-of-band signals and aliases. This reduces the need for external filters at the input, enhancing the overall system simplicity and performance.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Bits | 16 | |
| Sampling Rate | 30 MSPS to 160 MSPS | |
| Input Bandwidth | 10 MHz | |
| Analog Supply Voltage | 1.7 V to 1.9 V | V |
| Digital Supply Voltage | 1.8 V to 3.3 V | V |
| Power Consumption | 340 mW | mW |

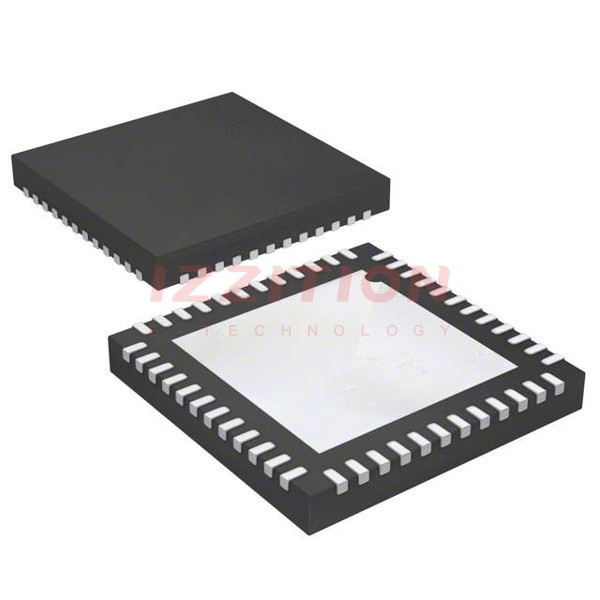

| Package Type | 48-Lead LFCSP (7mm x 7mm x 0.85mm) | |
| Operating Temperature Range | -40°C to +85°C | °C |
| Integral Nonlinearity (INL) | 1.5 LSB |
Key Features
- Continuous Time Σ-Δ Architecture: Achieves high dynamic range and wide bandwidth efficiently.
- Passive Input Structure: Reduces or eliminates the need for a driver amplifier due to resistive input impedance.
- Oversampling and Filtering: 32× oversampling and a fifth-order continuous time loop filter provide excellent alias rejection and reduce the need for external antialiasing filters.
- Integrated Decimation and Sample Rate Conversion: On-chip decimation filters and sample rate converters enable a user-defined output data rate from 30 MSPS to 160 MSPS.
- Flexible Digital Output Formats: Output data is presented in offset binary, Gray code, or twos complement format.
- Integrated PLL and Clock Multiplier: Provides the necessary 640 MHz internal clock for the oversampled Σ-Δ modulator.
- Low Power Consumption: Operates with a power consumption of 340 mW.
Applications
The AD9261BCPZRL7-10 is suitable for a variety of high-performance applications, including:
- Medical Imaging: High-resolution imaging systems that require precise and fast data conversion.
- Aerospace and Defense: Systems needing high dynamic range and wide bandwidth for signal processing.
- Industrial Automation: Applications requiring accurate and fast data acquisition and processing.
- Test and Measurement Equipment: High-precision instruments that demand reliable and accurate data conversion.
Q & A
- What is the resolution of the AD9261BCPZRL7-10 ADC?
The AD9261BCPZRL7-10 is a 16-bit analog-to-digital converter.
- What is the sampling rate range of the AD9261BCPZRL7-10?
The sampling rate range is from 30 MSPS to 160 MSPS.
- What is the input bandwidth of the AD9261BCPZRL7-10?
The input bandwidth is 10 MHz.
- What are the power supply requirements for the AD9261BCPZRL7-10?
The analog supply voltage is 1.7 V to 1.9 V, and the digital supply voltage is 1.8 V to 3.3 V.
- What is the package type of the AD9261BCPZRL7-10?
The package type is a 48-Lead LFCSP (7mm x 7mm x 0.85mm).
- What is the operating temperature range of the AD9261BCPZRL7-10?
The operating temperature range is -40°C to +85°C.
- Does the AD9261BCPZRL7-10 require external filters?
No, the integrated 32× oversampling and fifth-order continuous time loop filter significantly reduce the need for external filters.
- What digital output formats are supported by the AD9261BCPZRL7-10?
The output data is presented in offset binary, Gray code, or twos complement format.
- How much power does the AD9261BCPZRL7-10 consume?
The power consumption is 340 mW.
- Is the AD9261BCPZRL7-10 suitable for high-speed applications?
Yes, it is designed for high-speed applications with its ability to handle up to 160 MSPS sampling rates.
