Overview
The AD9229BCPZRL7-50 is a high-performance, 12-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This component is designed to convert analog signals into digital signals with high accuracy and speed. It is part of the AD9229 family, known for its robust performance in various data acquisition applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | AD9229BCPZRL7-50 |

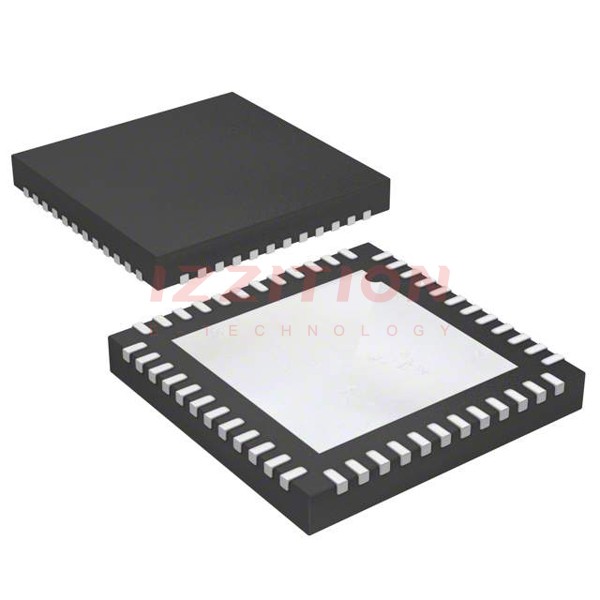

| Package | 48-LFCSP-VQ (7x7) |
| Number of Bits | 12 |
| Sampling Rate | 50 Msps |
| Polarity | Unipolar |
| Interface | LVDS, Serial |
| Integral Nonlinearity (INL) | 1 LSB |
| Differential Nonlinearity | 0.6 LSB |
| Number of A/D Converters | 4 |
| Minimum Supply Voltage | 2.7 V |
| Operating Temperature Range | -40°C to 85°C |
Key Features
- High-Speed Conversion: The AD9229BCPZRL7-50 operates at a sampling rate of 50 Msps, making it suitable for high-speed data acquisition applications.
- High Accuracy: With an integral nonlinearity (INL) of 1 LSB and differential nonlinearity (DNL) of 0.6 LSB, this ADC ensures high accuracy in digital signal conversion.
- Multiple Channels: This ADC features four analog-to-digital converters, allowing for simultaneous conversion of multiple analog signals.
- Low Power Consumption: The component operates within a supply voltage range of 2.7 V to 3.6 V, which helps in reducing power consumption.
- Compact Package: The 48-LFCSP-VQ (7x7) package is compact and suitable for space-constrained designs.
Applications
- Data Acquisition Systems: The AD9229BCPZRL7-50 is ideal for use in data acquisition systems that require high-speed and high-accuracy analog-to-digital conversion.
- Medical Imaging: It can be used in medical imaging equipment such as MRI and CT scanners where high-resolution and fast data conversion are critical.
- Industrial Automation: This ADC is suitable for industrial automation applications, including process control and monitoring systems.
- Aerospace and Defense: Its high performance and reliability make it a good fit for aerospace and defense applications.
Q & A
- What is the sampling rate of the AD9229BCPZRL7-50?
The AD9229BCPZRL7-50 operates at a sampling rate of 50 Msps. - How many bits does the AD9229BCPZRL7-50 ADC have?
The AD9229BCPZRL7-50 is a 12-bit analog-to-digital converter. - What is the minimum supply voltage for the AD9229BCPZRL7-50?
The minimum supply voltage for the AD9229BCPZRL7-50 is 2.7 V. - What type of interface does the AD9229BCPZRL7-50 use?
The AD9229BCPZRL7-50 uses LVDS and serial interfaces. - How many A/D converters are in the AD9229BCPZRL7-50?
The AD9229BCPZRL7-50 features four A/D converters. - What is the operating temperature range of the AD9229BCPZRL7-50?
The operating temperature range of the AD9229BCPZRL7-50 is -40°C to 85°C. - What is the package type of the AD9229BCPZRL7-50?
The AD9229BCPZRL7-50 comes in a 48-LFCSP-VQ (7x7) package. - What are some common applications of the AD9229BCPZRL7-50?
The AD9229BCPZRL7-50 is commonly used in data acquisition systems, medical imaging, industrial automation, and aerospace and defense applications. - What is the integral nonlinearity (INL) of the AD9229BCPZRL7-50?
The integral nonlinearity (INL) of the AD9229BCPZRL7-50 is 1 LSB. - What is the differential nonlinearity (DNL) of the AD9229BCPZRL7-50?
The differential nonlinearity (DNL) of the AD9229BCPZRL7-50 is 0.6 LSB.
