Overview
The AD9213BBPZ-10G, produced by Analog Devices Inc., is a high-performance, 12-bit radio frequency (RF) analog-to-digital converter (ADC) designed for applications requiring wide instantaneous bandwidth and low conversion error rates (CER). This ADC operates at sampling rates of up to 10.25 GSPS and features a 6.5 GHz input bandwidth, making it suitable for high dynamic range frequency and time domain applications. The device is based on an interleaved pipeline architecture and incorporates proprietary calibration and randomization techniques to suppress interleaving spurious artifacts, ensuring excellent spurious-free performance over a wide range of input signal conditions.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Resolution | 12-bit | |
| Sampling Rate | Up to 10.25 GSPS | |
| Input Bandwidth | 6.5 GHz | |
| Input Voltage Range | 1.4 V p-p full-scale | |
| Interface | 16-lane JESD204B (up to 16 Gbps line rate) | |
| Power Consumption | <4.6 W typical | |

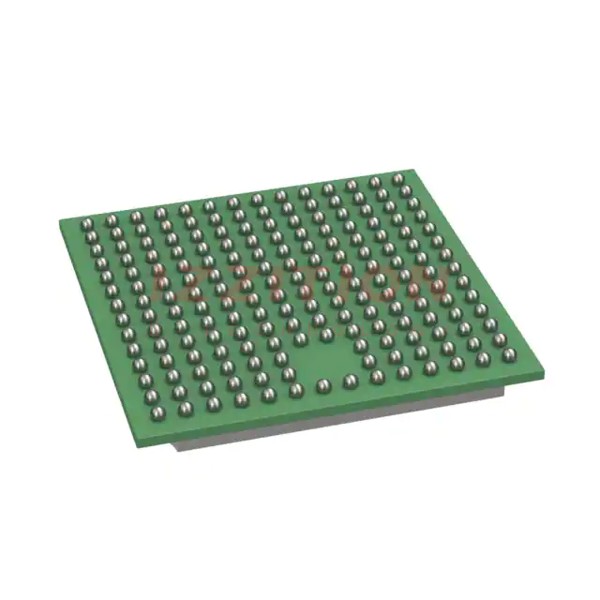

| Package | 192-ball BGA-ED (12mm x 12mm x 1.56mm) | |
| Junction Temperature Range | −20°C to +115°C | |
| Conversion Error Rate (CER) | <1 × 10^−16 |
Key Features
- On-chip negative voltage generators and on-chip temperature sensor
- Integrated digital downconverter (DDC) with a 48-bit numerically controlled oscillator (NCO)
- Selectable decimation factors and up to 16 profile settings for fast frequency hopping
- Fast overrange detection for efficient automatic gain control (AGC)
- Sample accurate multichip synchronization with synchronization of NCOs
- Overvoltage protection and low input capacitance (0.5 pF)
- LVDS input compliance and CMOS logic compliance
Applications
The AD9213BBPZ-10G is optimized for high dynamic range frequency and time domain applications, including:
- Wideband direct RF sampling systems
- High-speed data acquisition systems
- Radar and electronic warfare systems
- Wireless communication systems requiring high bandwidth and low noise
- Medical imaging and spectroscopy applications
Q & A
- What is the maximum sampling rate of the AD9213BBPZ-10G?
The AD9213BBPZ-10G can sample at rates up to 10.25 GSPS.
- What is the input bandwidth of the AD9213BBPZ-10G?
The input bandwidth is 6.5 GHz.
- What type of interface does the AD9213BBPZ-10G use?
The device uses a 16-lane JESD204B interface.
- How much power does the AD9213BBPZ-10G typically consume?
The device typically consumes less than 4.6 W.
- What is the package type and size of the AD9213BBPZ-10G?
The device is packaged in a 192-ball BGA-ED package, measuring 12mm x 12mm x 1.56mm.
- What is the junction temperature range for the AD9213BBPZ-10G?
The junction temperature range is −20°C to +115°C.
- Does the AD9213BBPZ-10G support multichip synchronization?
- What digital signal processing capabilities does the AD9213BBPZ-10G have?
The device includes a digital downconverter (DDC) with a 48-bit NCO and an I/Q digital decimator stage.
- How many profile settings are available for fast frequency hopping?
The device supports up to 16 profile settings for fast frequency hopping.
- Does the AD9213BBPZ-10G have overvoltage protection?
