Overview

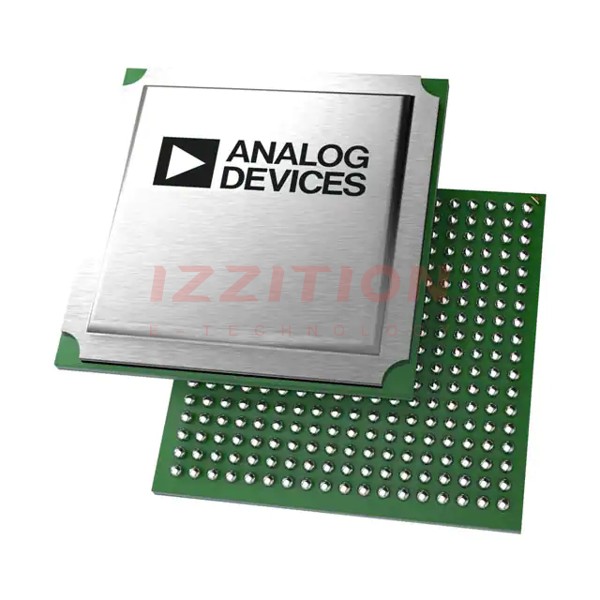

The AD9207BBPZ-6G is a high-performance, 10-bit, 6 GSPS analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed to meet the demanding requirements of high-speed data acquisition systems, particularly in applications such as radar, communication systems, and medical imaging. The AD9207BBPZ-6G offers exceptional linearity, low noise, and high dynamic range, making it an ideal choice for applications that require precise and reliable data conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 10 bits |
| Sample Rate | Up to 6 GSPS |
| Input Bandwidth | 9 GHz (full power bandwidth) |
| SNR (Signal-to-Noise Ratio) | 47.5 dBFS at 5.8 GHz input frequency |
| ENOB (Effective Number of Bits) | 8.5 bits at 5.8 GHz input frequency |
| Power Consumption | Approximately 3.5 W at 6 GSPS |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 196-ball BGA |
Key Features
- High-speed sampling up to 6 GSPS
- Excellent linearity and low noise performance
- Wide input bandwidth of 9 GHz
- Low power consumption of approximately 3.5 W at 6 GSPS
- Flexible clocking options with internal or external clock sources
- Support for JESD204B high-speed serial interface
- Integrated digital downconverter (DDC) and numerically controlled oscillator (NCO)
Applications
- Radar and electronic warfare systems
- Communication systems, including 5G and satellite communications
- Medical imaging, such as MRI and ultrasound
- Test and measurement equipment
- Aerospace and defense systems
Q & A
- What is the maximum sample rate of the AD9207BBPZ-6G?
The AD9207BBPZ-6G can sample up to 6 GSPS. - What is the resolution of the AD9207BBPZ-6G?
The resolution of the AD9207BBPZ-6G is 10 bits. - What is the input bandwidth of the AD9207BBPZ-6G?
The input bandwidth of the AD9207BBPZ-6G is 9 GHz. - What is the typical power consumption of the AD9207BBPZ-6G at 6 GSPS?
The typical power consumption is approximately 3.5 W at 6 GSPS. - Does the AD9207BBPZ-6G support JESD204B interface?
Yes, the AD9207BBPZ-6G supports the JESD204B high-speed serial interface. - What are some common applications of the AD9207BBPZ-6G?
Common applications include radar, communication systems, medical imaging, test and measurement equipment, and aerospace and defense systems. - What is the operating temperature range of the AD9207BBPZ-6G?
The operating temperature range is -40°C to +85°C. - What type of package does the AD9207BBPZ-6G come in?
The AD9207BBPZ-6G comes in a 196-ball BGA package. - Does the AD9207BBPZ-6G have integrated digital downconverter (DDC) and numerically controlled oscillator (NCO)?
Yes, it does have integrated DDC and NCO. - Where can I find detailed specifications and datasheets for the AD9207BBPZ-6G?
Detailed specifications and datasheets can be found on the Analog Devices website or through distributors like Digi-Key, Mouser, and Arrow Electronics.
