Overview
The AD9057BRS-80 is an 8-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This high-speed ADC is designed for demanding applications requiring precise and rapid data acquisition. With a sampling rate of 80 million samples per second (MSPS), it is well-suited for various high-performance systems. The AD9057BRS-80 features an internal reference voltage, single-ended input, and a parallel data interface, making it a versatile component for a wide range of applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | AD9057BRS-80 |
| Category | Integrated Circuits (ICs) > Data Acquisition - Analog to Digital Converters |
| Resolution | 8 bits |
| Sampling Rate | 80 MSPS |
| Input Type | Single-ended |
| Reference Type | Internal |
| Supply Voltage (Analog/Digital) | 5V |

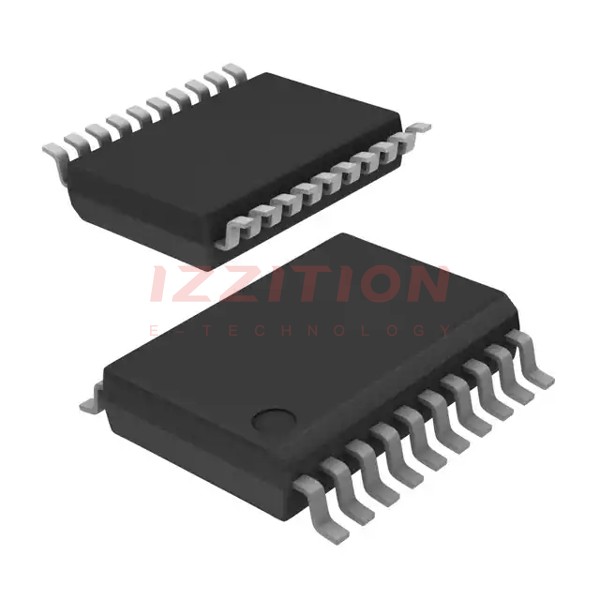

| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Operating Temperature | -40°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Data Interface | Parallel |
| Architecture | Pipelined |
Key Features
- High-speed sampling rate of 80 MSPS for rapid data acquisition.
- 8-bit resolution for precise data conversion.
- Single-ended input type for simplicity in design.
- Internal reference voltage for accurate conversions.
- Parallel data interface for efficient data transfer.
- Low power consumption for efficient operation.
- Surface Mount 20-SSOP package for compact design.
- Operating temperature range of -40°C to 85°C for reliability in varying environments.
Applications
The AD9057BRS-80 is suitable for a variety of high-performance applications, including:
- Medical Imaging: High-speed data acquisition is crucial in medical imaging technologies such as MRI and CT scanners.
- Industrial Automation: For real-time signal processing and control in industrial automation systems.
- Aerospace and Defense: Where high-speed and precise data conversion are essential.
- Test and Measurement: In oscilloscopes, signal analyzers, and other test equipment requiring high-speed ADCs.
- Communications: For high-speed data conversion in communication systems.
Q & A
- What is the sampling rate of the AD9057BRS-80?
The AD9057BRS-80 has a sampling rate of 80 million samples per second (MSPS). - What is the resolution of the AD9057BRS-80?
The AD9057BRS-80 has an 8-bit resolution. - What type of input does the AD9057BRS-80 support?
The AD9057BRS-80 supports single-ended input. - Does the AD9057BRS-80 have an internal reference voltage?
Yes, the AD9057BRS-80 has an internal reference voltage. - What is the data interface type of the AD9057BRS-80?
The AD9057BRS-80 uses a parallel data interface. - What is the operating temperature range of the AD9057BRS-80?
The operating temperature range is from -40°C to 85°C. - Is the AD9057BRS-80 RoHS compliant?
No, the AD9057BRS-80 contains lead and is not RoHS compliant. - What is the package type of the AD9057BRS-80?
The AD9057BRS-80 comes in a 20-SSOP package. - What are some typical applications of the AD9057BRS-80?
Typical applications include medical imaging, industrial automation, aerospace and defense, test and measurement, and communications. - Where can I find detailed specifications and datasheets for the AD9057BRS-80?
Detailed specifications and datasheets can be found on the official Analog Devices website or through authorized distributors like Digi-Key, Mouser, and others.
