Overview

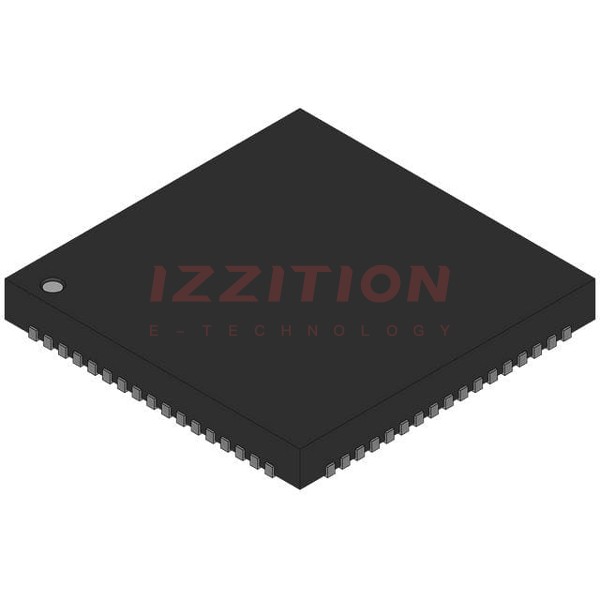

The AD9038JE is an 8-bit flash analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for high-speed conversion and is suitable for a variety of applications requiring rapid analog-to-digital conversion. The AD9038JE operates with a parallel output and is known for its high accuracy and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 8 bits |
| Conversion Type | Flash |
| Output Type | Parallel |
| Sampling Rate | Up to 300 MSPS |
| Power Supply | Single 5V supply |
| Package Type | Various packages including SOIC and others |
| Operating Temperature Range | -40°C to +85°C |
Key Features
- High-speed conversion up to 300 MSPS
- 8-bit resolution with parallel output
- Single 5V power supply
- Low power consumption
- High accuracy and reliability
- Compact packaging options
Applications
The AD9038JE is versatile and can be used in various applications such as:
- High-speed data acquisition systems
- Medical imaging and diagnostics
- Radar and communication systems
- Industrial control and automation
- Test and measurement equipment
Q & A
- What is the resolution of the AD9038JE ADC?
The AD9038JE has an 8-bit resolution. - What is the maximum sampling rate of the AD9038JE?
The maximum sampling rate is up to 300 MSPS. - What type of output does the AD9038JE provide?
The AD9038JE provides a parallel output. - What is the power supply requirement for the AD9038JE?
The AD9038JE operates on a single 5V supply. - What are the typical operating temperature ranges for the AD9038JE?
The operating temperature range is -40°C to +85°C. - In what types of applications is the AD9038JE commonly used?
The AD9038JE is commonly used in high-speed data acquisition, medical imaging, radar and communication systems, industrial control, and test and measurement equipment. - What is the package type for the AD9038JE?
The AD9038JE is available in various packages including SOIC and others. - How accurate is the AD9038JE?
The AD9038JE is known for its high accuracy and reliability. - Is the AD9038JE suitable for high-speed applications?
Yes, the AD9038JE is designed for high-speed applications. - Where can I find detailed specifications and datasheets for the AD9038JE?
Detailed specifications and datasheets can be found on the official Analog Devices website or through authorized distributors.
