Overview
The AD8803AR-REEL is an 8-bit digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is part of the company's extensive range of analog and mixed-signal integrated circuits. The AD8803AR-REEL is designed to provide high performance and reliability in various applications requiring precise digital-to-analog conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 8 bits |

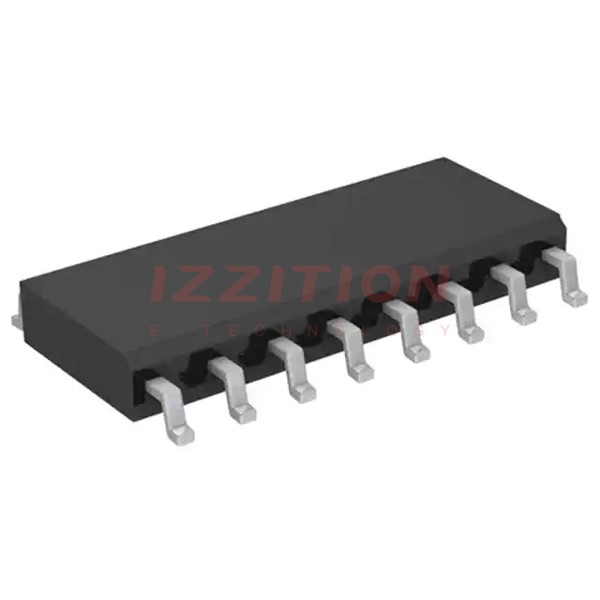

| Package Type | 16-SOIC (Small Outline Integrated Circuit) |
| Settling Time | 0.6 µs |
| Supply Voltage | 3V |
| Operating Temperature | Typically -40°C to 85°C |
Key Features
- High-speed 8-bit digital-to-analog conversion with a settling time of 0.6 µs.
- Operates on a single 3V supply voltage.
- Available in a 16-SOIC package, which is compact and suitable for a variety of applications.
- Octal DAC configuration, allowing for multiple channel control.
- Shutdown feature to reduce power consumption when not in use.
Applications
The AD8803AR-REEL is versatile and can be used in a range of applications, including:
- Industrial control systems where precise analog output is required.
- Aerospace and defense systems that demand high reliability and performance.
- Medical devices that need accurate and fast digital-to-analog conversion.
- Automotive systems, particularly in infotainment and control systems.
- Test and measurement equipment where high-speed and accurate DACs are essential.
Q & A
- What is the resolution of the AD8803AR-REEL DAC?
The AD8803AR-REEL has an 8-bit resolution. - What is the typical settling time of the AD8803AR-REEL?
The settling time is 0.6 µs. - What is the supply voltage requirement for the AD8803AR-REEL?
The component operates on a single 3V supply voltage. - What package type is the AD8803AR-REEL available in?
The AD8803AR-REEL is available in a 16-SOIC package. - Does the AD8803AR-REEL have a shutdown feature?
Yes, it includes a shutdown feature to reduce power consumption when not in use. - What are some common applications of the AD8803AR-REEL?
Common applications include industrial control systems, aerospace and defense systems, medical devices, automotive systems, and test and measurement equipment. - What is the operating temperature range of the AD8803AR-REEL?
The operating temperature range is typically -40°C to 85°C. - Is the AD8803AR-REEL suitable for high-speed applications?
Yes, it is designed for high-speed applications with a fast settling time. - Can the AD8803AR-REEL be used in multiple channel configurations?
Yes, it is an octal DAC, allowing for multiple channel control. - Where can I purchase the AD8803AR-REEL?
The AD8803AR-REEL can be purchased from various electronics component distributors such as JAK Electronics, Bowell-IC, and other authorized suppliers.
