Overview

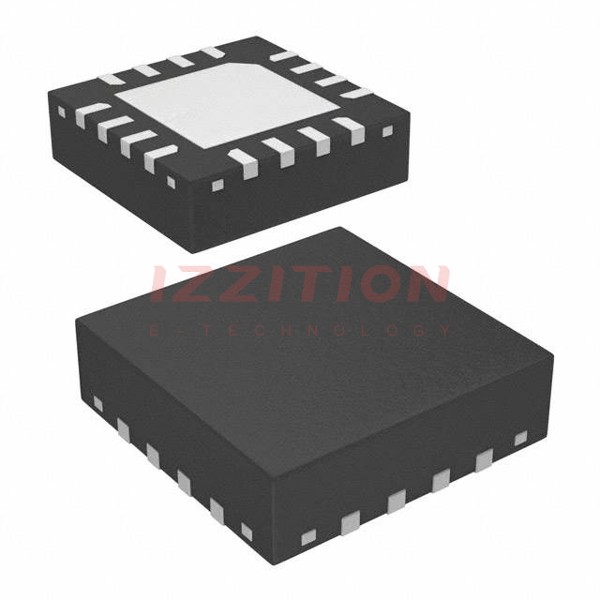

The AD8398AACPZ-R2 is a high-performance integrated circuit designed by Analog Devices Inc. This component is specifically tailored as a 2/0 driver for VDSL2 applications. It is packaged in a 16-lead Lead Frame Chip Scale Package (LFCSP) with a 4x4 mm footprint, making it suitable for compact and high-density designs. The device operates within a wide temperature range of -40°C to 85°C, ensuring reliability in various environmental conditions.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | AD8398AACPZ-R2 |
| Manufacturer | Analog Devices Inc. |
| Package/Case | 16-LFCSP (4x4 mm) |
| Operating Voltage | 12V, ±6V |
| Operating Temperature | -40°C to 85°C |
| Protocol | VDSL2 |
| RoHS Status | Compliant |
Key Features
- High-performance 2/0 driver for VDSL2 applications
- Compact 16-lead LFCSP package (4x4 mm)
- Wide operating temperature range: -40°C to 85°C
- Operates at 12V and ±6V
- RoHS compliant
Applications
The AD8398AACPZ-R2 is primarily used in Very-high-bit-rate Digital Subscriber Line 2 (VDSL2) systems. It is suitable for various telecommunications and broadband access applications, including DSL modems, DSLAMs (Digital Subscriber Line Access Multiplexers), and other high-speed data transmission equipment.
Q & A
- What is the part number of this component? The part number is AD8398AACPZ-R2.
- Who is the manufacturer of this component? The manufacturer is Analog Devices Inc.
- What is the package type of the AD8398AACPZ-R2? It is packaged in a 16-lead Lead Frame Chip Scale Package (LFCSP) with a 4x4 mm footprint.
- What is the operating voltage range of the AD8398AACPZ-R2? The operating voltage range is 12V and ±6V.
- What is the operating temperature range of the AD8398AACPZ-R2? The operating temperature range is -40°C to 85°C.
- Is the AD8398AACPZ-R2 RoHS compliant? Yes, it is RoHS compliant.
- What protocol does the AD8398AACPZ-R2 support? It supports the VDSL2 protocol.
- What are the primary applications of the AD8398AACPZ-R2? It is used in VDSL2 systems, DSL modems, DSLAMs, and other high-speed data transmission equipment.
- Where can I find the datasheet for the AD8398AACPZ-R2? The datasheet can be found on the official Analog Devices website or through authorized distributors like Mouser, Digi-Key, etc.
- What is the significance of the '2/0' designation in the AD8398AACPZ-R2? The '2/0' designation indicates the specific configuration of the driver, which is optimized for VDSL2 applications.
