Overview
The AD8368ACPZ-WP is a high-performance variable gain amplifier (VGA) produced by Analog Devices Inc. This component is designed for applications requiring precise gain control over a wide frequency range, up to 800 MHz. The AD8368 features an analog linear-in-dB gain control, making it suitable for various RF and microwave applications. It is part of the AD8368 series, known for its excellent gain range, conformance, and flatness, thanks to Analog Devices' X-AMP architecture.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices |
| Part Number | AD8368ACPZ-WP |
| Number of Channels | 1 |
| BW -3 dB (typ) | 800 MHz |
| Gain Set | Analog |
| Gain (max) | 22 dB |
| Gain (min) | -12 dB |
| Is (typ) | 60 mA |
| Operating Temperature Range | -40°C to 85°C |
| Vs span (max) | 5.5 V |
| Vs span (min) | 4.75 V |

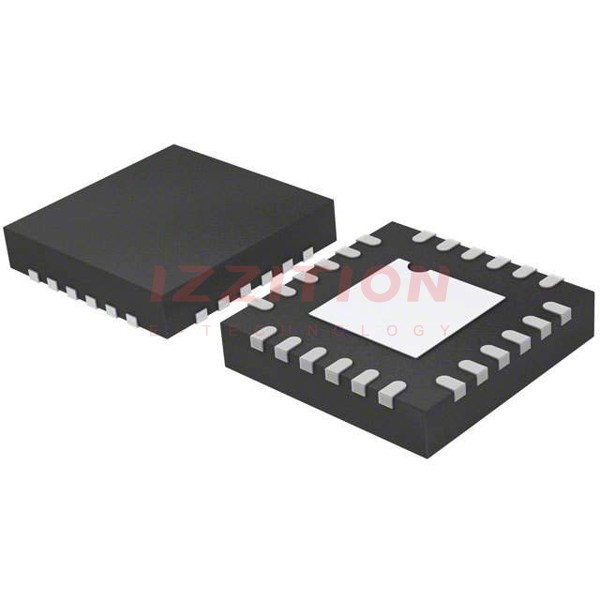

| Package | 24-Lead LFCSP (4mm x 4mm w/ EP) |
| Pins | 24 |
| RoHS | Compliant |
Key Features
- Analog Linear-in-dB Gain Control: The AD8368 offers a gain range of -12 dB to +22 dB, scaled accurately to 37.5 dB/V with excellent conformance error.
- High Frequency Operation: The amplifier has a 3 dB bandwidth of 800 MHz, nominally independent of the gain setting.
- Automatic Gain Control (AGC): The component can be configured as a complete AGC system with RSSI by pulling the MODE pin low and using the on-board rms detector.
- Low Noise Figure: At maximum gain, the output noise floor is -143 dBm/Hz, corresponding to a 9.5 dB noise figure.
- Power Management: The AD8368 can be fully powered down to <3 mA by grounding the ENBL pin.
- Industrial Temperature Range: Operates over -40°C to 85°C, making it suitable for a wide range of environments.
Applications
The AD8368ACPZ-WP is versatile and can be used in various applications, including:
- RF and Microwave Systems: Due to its high frequency operation and precise gain control, it is ideal for RF and microwave systems.
- Communication Systems: Suitable for use in communication systems requiring dynamic gain adjustment.
- Test and Measurement Equipment: Can be used in test and measurement equipment where precise signal level control is necessary.
- Automotive and Industrial Systems: Its robust design and wide operating temperature range make it suitable for automotive and industrial applications.
Q & A
- What is the maximum frequency range of the AD8368ACPZ-WP?
The AD8368ACPZ-WP operates up to a frequency of 800 MHz. - What is the gain range of the AD8368ACPZ-WP?
The gain range is from -12 dB to +22 dB. - How is the gain control configured in the AD8368ACPZ-WP?
The gain control is configured using an analog linear-in-dB gain control, scaled accurately to 37.5 dB/V. - Can the AD8368ACPZ-WP be used as an AGC system?
Yes, it can be configured as a complete AGC system with RSSI by pulling the MODE pin low and using the on-board rms detector. - What is the typical current consumption of the AD8368ACPZ-WP?
The typical current consumption is 60 mA. - How can the AD8368ACPZ-WP be powered down?
The component can be fully powered down to <3 mA by grounding the ENBL pin. - What is the operating temperature range of the AD8368ACPZ-WP?
The operating temperature range is from -40°C to 85°C. - Is the AD8368ACPZ-WP RoHS compliant?
Yes, it is RoHS compliant. - What package type is the AD8368ACPZ-WP available in?
The component is available in a 24-Lead LFCSP (4mm x 4mm w/ EP) package. - What is the noise figure of the AD8368ACPZ-WP at maximum gain?
The noise figure at maximum gain is 9.5 dB.
