Overview

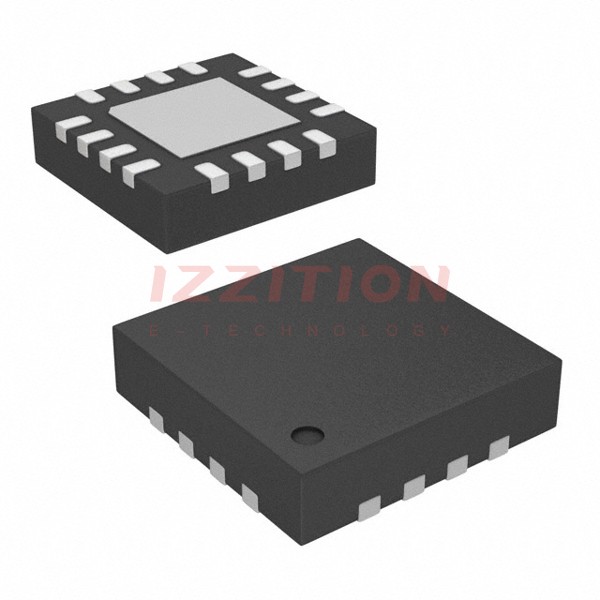

The AD8352ACPZ-R7 is a high-performance, ultralow distortion differential RF/IF amplifier produced by Analog Devices Inc. This component is designed to operate within a wide frequency range, making it suitable for various RF and IF applications. The amplifier is packaged in a 16-lead WFQFN (Wafer Level Fine Pitch Ball Grid Array) with an exposed pad, which enhances thermal dissipation and reduces package parasitics.
Key Specifications
| Parameter | Value |
|---|---|
| Frequency Range | Up to 2 GHz |
| Supply Voltage | 5.5 V |
| Package Type | 16-lead WFQFN Exposed Pad |
| Operating Temperature | -40°C to 85°C |
| Gain | Fixed gain of 20 dB |
| Distortion | Ultralow distortion |
| Noise Figure | Typically 3.5 dB at 100 MHz |
Key Features
- Ultralow distortion for high-fidelity signal amplification
- Fixed gain of 20 dB
- Low noise figure, typically 3.5 dB at 100 MHz
- Wide frequency range up to 2 GHz
- Single 5.5 V supply voltage
- 16-lead WFQFN package with exposed pad for improved thermal performance
Applications
- RF and IF amplification in wireless communication systems
- Base station and repeater equipment
- Cable television (CATV) systems
- Instrumentation and test equipment
- Medical imaging and diagnostic equipment
Q & A
- What is the frequency range of the AD8352ACPZ-R7? The AD8352ACPZ-R7 operates up to a frequency of 2 GHz.
- What is the supply voltage for the AD8352ACPZ-R7? The supply voltage is 5.5 V.
- What is the package type of the AD8352ACPZ-R7? The component is packaged in a 16-lead WFQFN with an exposed pad.
- What is the operating temperature range of the AD8352ACPZ-R7? The operating temperature range is -40°C to 85°C.
- What is the gain of the AD8352ACPZ-R7? The gain is fixed at 20 dB.
- What are the key applications of the AD8352ACPZ-R7? Key applications include RF and IF amplification in wireless communication systems, base station and repeater equipment, CATV systems, instrumentation and test equipment, and medical imaging and diagnostic equipment.
- What is the noise figure of the AD8352ACPZ-R7? The noise figure is typically 3.5 dB at 100 MHz.
- Why is the WFQFN package with an exposed pad beneficial? The WFQFN package with an exposed pad enhances thermal dissipation and reduces package parasitics.
- Where can I find detailed specifications for the AD8352ACPZ-R7? Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Digi-Key, Mouser, and Element14.
- What is the distortion performance of the AD8352ACPZ-R7? The AD8352ACPZ-R7 is known for its ultralow distortion, making it suitable for high-fidelity signal amplification.
