Overview

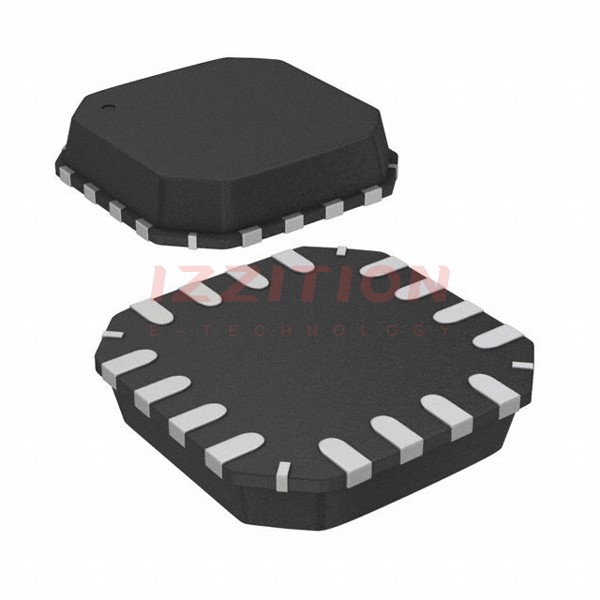

The AD8295ACPZ-R7 is a precision instrumentation amplifier produced by Analog Devices Inc. This component is designed to provide a complete front-end solution for instrumentation amplifier applications in a compact 4 mm × 4 mm package. It integrates all necessary components, making it ideal for space-constrained designs that require high precision and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | 16-LFCSP-VQ (4x4) |
| Number of Circuits | 3 |
| Gain Range | Programmable |
| Input Offset Voltage | Typically 10 μV |
| Input Bias Current | Typically 1 nA |
| Common Mode Rejection Ratio (CMRR) | Typically 120 dB |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage Range | ±2.5V to ±18V |
Key Features
- High precision instrumentation amplifier with low input offset voltage and high CMRR.
- Compact 4 mm × 4 mm package, suitable for space-constrained designs.
- Programmable gain, allowing flexibility in various applications.
- Low input bias current, minimizing errors in measurement circuits.
- Wide operating temperature range, making it suitable for diverse environmental conditions.
Applications
- Medical devices, such as ECG and EEG systems, where high precision and low noise are critical.
- Industrial measurement and control systems, including pressure and temperature sensors.
- Aerospace and defense applications requiring high reliability and precision.
- Automotive systems, including sensor interfaces and data acquisition systems.
Q & A
- What is the package type of the AD8295ACPZ-R7? The AD8295ACPZ-R7 comes in a 16-LFCSP-VQ (4x4) package.
- What is the typical input offset voltage of the AD8295ACPZ-R7? The typical input offset voltage is 10 μV.
- What is the common mode rejection ratio (CMRR) of the AD8295ACPZ-R7? The CMRR is typically 120 dB.
- What is the operating temperature range of the AD8295ACPZ-R7? The operating temperature range is -40°C to +125°C.
- Is the gain of the AD8295ACPZ-R7 programmable? Yes, the gain of the AD8295ACPZ-R7 is programmable.
- What are some typical applications of the AD8295ACPZ-R7? Typical applications include medical devices, industrial measurement and control systems, aerospace and defense, and automotive systems.
- What is the supply voltage range for the AD8295ACPZ-R7? The supply voltage range is ±2.5V to ±18V.
- How many circuits are integrated into the AD8295ACPZ-R7? The AD8295ACPZ-R7 integrates 3 circuits.
- What is the typical input bias current of the AD8295ACPZ-R7? The typical input bias current is 1 nA.
- Who is the manufacturer of the AD8295ACPZ-R7? The AD8295ACPZ-R7 is manufactured by Analog Devices Inc..
