Overview

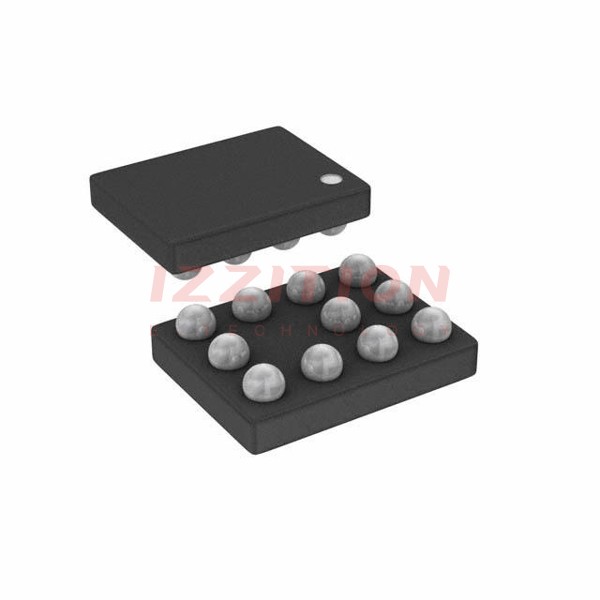

The AD8235ACBZ-P7 is a micropower instrumentation amplifier produced by Analog Devices Inc. This component is renowned for its low power consumption and high performance, making it suitable for a variety of applications where precision and efficiency are crucial. The AD8235ACBZ-P7 is packaged in a WLCSP (Wafer Level Chip Scale Package) and operates with a very low current of 40 µA, which is ideal for battery-powered devices and other low-power systems.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | WLCSP-11 |
| Supply Voltage | 2.7V to 5.5V |
| Current Consumption | 40 µA |
| Offset Voltage | 2500 µV (max) |
| Bandwidth | 0.023 MHz |
| Gain Range | 1 to 1000 |
| Operating Temperature | -40°C to 125°C |
Key Features
- Low power consumption: 40 µA current draw.
- High precision: Low offset voltage of 2500 µV (max).
- Flexible gain settings: Gain range from 1 to 1000.
- Compact packaging: WLCSP-11 package for space-saving designs.
- Broad supply voltage range: Operates from 2.7V to 5.5V.
- Wide operating temperature range: -40°C to 125°C.
Applications
The AD8235ACBZ-P7 is versatile and can be used in various applications, including:
- Battery-powered medical devices: Due to its low power consumption, it is ideal for portable medical equipment.
- Industrial measurement systems: Suitable for precision measurement in industrial settings.
- Aerospace and defense: Its high precision and low power make it suitable for aerospace and defense applications.
- Automotive systems: Can be used in automotive sensors and measurement systems.
Q & A
- What is the package type of the AD8235ACBZ-P7? The AD8235ACBZ-P7 is packaged in a WLCSP-11.
- What is the current consumption of the AD8235ACBZ-P7? The current consumption is 40 µA.
- What is the maximum offset voltage of the AD8235ACBZ-P7? The maximum offset voltage is 2500 µV.
- What is the bandwidth of the AD8235ACBZ-P7? The bandwidth is 0.023 MHz.
- What is the gain range of the AD8235ACBZ-P7? The gain range is from 1 to 1000.
- What is the operating temperature range of the AD8235ACBZ-P7? The operating temperature range is -40°C to 125°C.
- What is the supply voltage range for the AD8235ACBZ-P7? The supply voltage range is from 2.7V to 5.5V.
- Is the AD8235ACBZ-P7 suitable for battery-powered devices? Yes, it is highly suitable due to its low power consumption.
- Can the AD8235ACBZ-P7 be used in industrial measurement systems? Yes, it is suitable for precision measurement in industrial settings.
- Is the AD8235ACBZ-P7 available in stock? Yes, it is available in stock from various distributors like Mouser Electronics.
