Overview
The AD817ANZ, produced by Analog Devices Inc., is a high-speed, low-power operational amplifier designed for a wide range of signal conditioning and data acquisition applications. It is particularly suited for applications requiring high bandwidth, low distortion, and the ability to drive heavy capacitive or resistive loads. The AD817ANZ offers a unique combination of high performance, low power consumption, and flexibility in power supply options, making it an ideal choice for demanding yet power-sensitive applications.
Key Specifications
Parameter | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Unity Gain Bandwidth | ±5 V | 30 | 35 | 50 | MHz |
±15 V | 45 | 50 | MHz | ||
Slew Rate | RLOAD = 1 kΩ | 200 | 250 | V/μs | |
Settling Time to 0.1% | 10 V Step | 45 | ns | ||
Supply Voltage | ±5 V to ±15 V | ±18 V | V | ||
Supply Current | ±5 V, ±15 V | 7.0 | 7.5 | mA | |
Operating Temperature Range | -40 | +85 | °C | ||

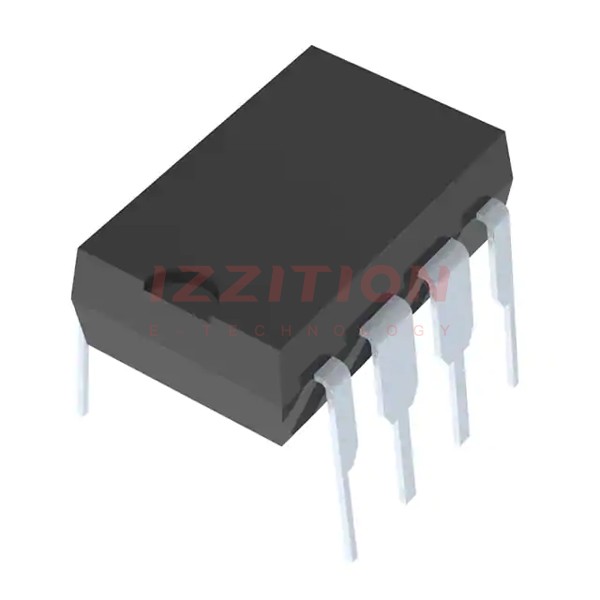

Package/Case | 8-Pin Plastic DIP, 8-Pin SOIC |
Key Features
- High speed with a 50 MHz unity gain bandwidth and 350 V/μs slew rate.
- Low power consumption with a maximum supply current of 7.5 mA.
- Flexible power supply options: specified for single (+5 V) and dual (±5 V to ±15 V) power supplies.
- High output drive capability: drives unlimited capacitive loads and delivers a minimum output current of 50 mA.
- Excellent video performance: 0.04% and 0.08° differential gain and phase errors at 3.58 MHz, and 0.1 dB flatness to 70 MHz (gain = +1).
- Available in 8-pin plastic mini-DIP and SOIC packages.
Applications
The AD817ANZ is ideally suited for a broad spectrum of signal conditioning and data acquisition applications, including:
- ADC buffers and line drivers.
- Video and imaging systems.
- High-speed signal processing.
- Data acquisition systems.
Q & A
- What is the unity gain bandwidth of the AD817ANZ?
The AD817ANZ has a unity gain bandwidth of 30 MHz to 50 MHz, depending on the power supply conditions (±5 V or ±15 V). - What is the slew rate of the AD817ANZ?
The slew rate of the AD817ANZ is 200 V/μs to 250 V/μs with a 1 kΩ load resistance. - What is the settling time of the AD817ANZ?
The settling time to 0.1% for a 10 V step is 45 ns. - What are the power supply options for the AD817ANZ?
The AD817ANZ is specified for operation with a single +5 V power supply and with dual supplies from ±5 V to ±15 V. - What is the maximum supply current of the AD817ANZ?
The maximum supply current is 7.5 mA. - Can the AD817ANZ drive capacitive loads?
Yes, the AD817ANZ can drive unlimited capacitive loads while maintaining excellent signal integrity. - What are the differential gain and phase errors of the AD817ANZ?
The differential gain and phase errors are 0.04% and 0.08° at 3.58 MHz. - What is the operating temperature range of the AD817ANZ?
The operating temperature range is -40°C to +85°C. - In what packages is the AD817ANZ available?
The AD817ANZ is available in 8-pin plastic mini-DIP and 8-pin SOIC packages. - What are some typical applications of the AD817ANZ?
Typical applications include ADC buffers, line drivers, video and imaging systems, and high-speed signal processing.
