Overview

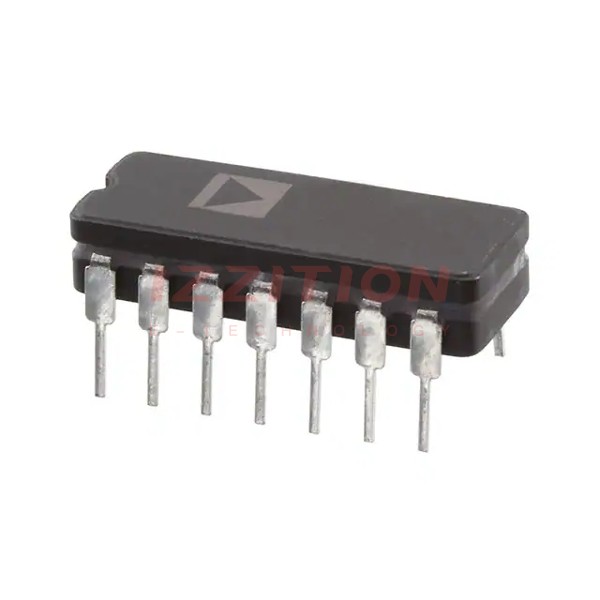

The AD8004SQ, produced by Analog Devices Inc., is a quad, low power, high speed operational amplifier. It is designed to operate on single or dual supplies and utilizes a current feedback architecture. This amplifier is notable for its high slew rate of 3000 V/μs, making it ideal for handling large amplitude pulses. The AD8004SQ is fully specified for a +5 V supply and can operate within a power supply range of +4 V to +12 V. It is particularly suited for applications where high speed, low power consumption, and compact packaging are critical.
Key Specifications
| Parameter | Value | Conditions |
|---|---|---|
| Bandwidth (–3 dB) | 250 MHz | G = +1 |
| Slew Rate | 3000 V/μs | |
| Settling Time to 0.1% | 21 ns | |
| Rise Time for 2 V Step | 1.8 ns | |
| Power Supply Current per Amplifier | 3.5 mA | |
| Output Current | 50 mA | |
| Differential Gain Error | 0.04% | RL = 150 Ω, G = +2 |
| Differential Phase Error | 0.10° | RL = 150 Ω, G = +2 |
| Total Harmonic Distortion (THD) | –78 dBc at 5 MHz, –61 dBc at 20 MHz | |
| Operating Temperature Range | –40°C to +85°C | |
| Package | 14-Lead SOIC |
Key Features
- High speed with 250 MHz –3 dB bandwidth (G = +1) and 3000 V/μs slew rate.
- Low power consumption with 3.5 mA per amplifier power supply current.
- Single supply operation with full specification for +5 V supply.
- Good video specifications including gain flatness of 0.1 dB to 30 MHz.
- Low distortion with –78 dBc THD at 5 MHz and –61 dBc THD at 20 MHz.
- High output current capability of up to 50 mA.
- Compact 14-lead SOIC package suitable for portable and battery-powered applications.
Applications
- Image Scanners
- Active Filters
- Video Switchers
- Special Effects
- General-purpose high-speed applications requiring dual or single power supplies.
Q & A
- What is the bandwidth of the AD8004SQ?
The AD8004SQ has a bandwidth of 250 MHz at a gain of +1.
- What is the slew rate of the AD8004SQ?
The slew rate of the AD8004SQ is 3000 V/μs.
- What is the power supply current per amplifier for the AD8004SQ?
The power supply current per amplifier is 3.5 mA.
- Can the AD8004SQ operate on a single supply?
Yes, the AD8004SQ can operate on a single supply and is fully specified for a +5 V supply.
- What are the differential gain and phase errors of the AD8004SQ?
The differential gain error is 0.04%, and the differential phase error is 0.10° at RL = 150 Ω and G = +2.
- What is the output current capability of the AD8004SQ?
The AD8004SQ can deliver up to 50 mA of output current.
- In what package is the AD8004SQ available?
The AD8004SQ is available in a 14-lead SOIC package.
- What are some typical applications of the AD8004SQ?
Typical applications include image scanners, active filters, video switchers, special effects, and general-purpose high-speed applications.
- What is the operating temperature range of the AD8004SQ?
The operating temperature range is –40°C to +85°C.
- What is the total harmonic distortion (THD) of the AD8004SQ at different frequencies?
The THD is –78 dBc at 5 MHz and –61 dBc at 20 MHz.
