Overview

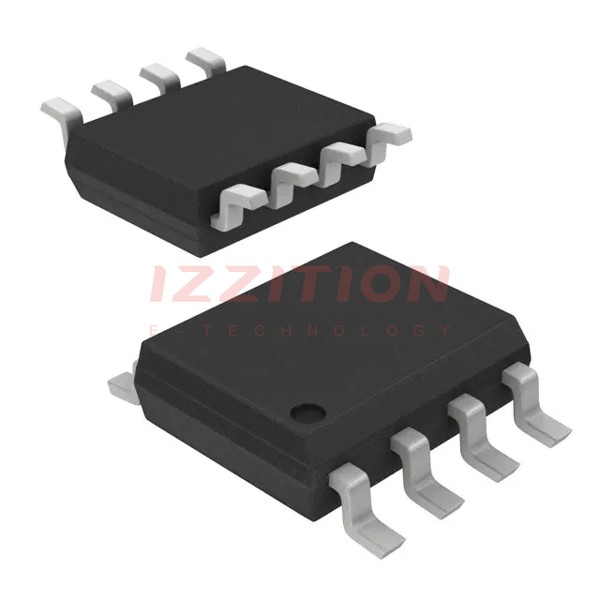

The AD795JRZ-REEL is a low noise, precision FET input operational amplifier produced by Analog Devices Inc. This device is renowned for its excellent DC performance and low voltage noise, making it suitable for a variety of high-precision applications. The AD795JRZ-REEL offers the benefits of both bipolar and FET input op-amps, including low offset drift and very low bias current. It is available in an 8-lead SOIC package and is RoHS compliant.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Input Offset Voltage | - | - | 500 μV | - |
| Input Bias Current | - | - | 2 pA | - |
| Supply Voltage | ±4 V | - | ±18 V | - |
| Quiescent Current | 1.3 mA | 1.5 mA | - | - |
| Bandwidth | - | - | 1.6 MHz | - |
| Common-Mode Rejection Ratio | 86 dB | - | 110 dB | - |
| Operating Temperature Range | 0°C | - | 70°C | - |
| Package Type | - | - | 8-Lead SOIC | - |
Key Features
- Low noise and low offset drift, combining the benefits of bipolar and FET input op-amps.
- Very low input bias current of 2 pA maximum.
- Low supply current of 1.5 mA maximum.
- High common-mode rejection ratio (CMRR) of up to 110 dB.
- Wide operating temperature range from 0°C to 70°C.
- Available in an 8-lead SOIC package and RoHS compliant.
Applications
- Low noise photodiode preamps.
- CT scanners.
- Precision I-to-V converters.
- High-precision instrumentation and measurement systems.
- Audio and medical equipment requiring low noise and high precision.
Q & A
- What is the input offset voltage of the AD795JRZ-REEL?
The input offset voltage is up to 500 μV. - What is the maximum input bias current of the AD795JRZ-REEL?
The maximum input bias current is 2 pA. - What is the operating supply voltage range of the AD795JRZ-REEL?
The operating supply voltage range is ±4 V to ±18 V. - What is the typical quiescent current of the AD795JRZ-REEL?
The typical quiescent current is 1.5 mA. - What is the bandwidth of the AD795JRZ-REEL?
The bandwidth is up to 1.6 MHz. - What is the common-mode rejection ratio (CMRR) of the AD795JRZ-REEL?
The CMRR is up to 110 dB. - What is the operating temperature range of the AD795JRZ-REEL?
The operating temperature range is from 0°C to 70°C. - In what package is the AD795JRZ-REEL available?
The AD795JRZ-REEL is available in an 8-lead SOIC package. - Is the AD795JRZ-REEL RoHS compliant?
Yes, the AD795JRZ-REEL is RoHS compliant. - What are some typical applications of the AD795JRZ-REEL?
Typical applications include low noise photodiode preamps, CT scanners, precision I-to-V converters, and high-precision instrumentation and measurement systems.
