Overview

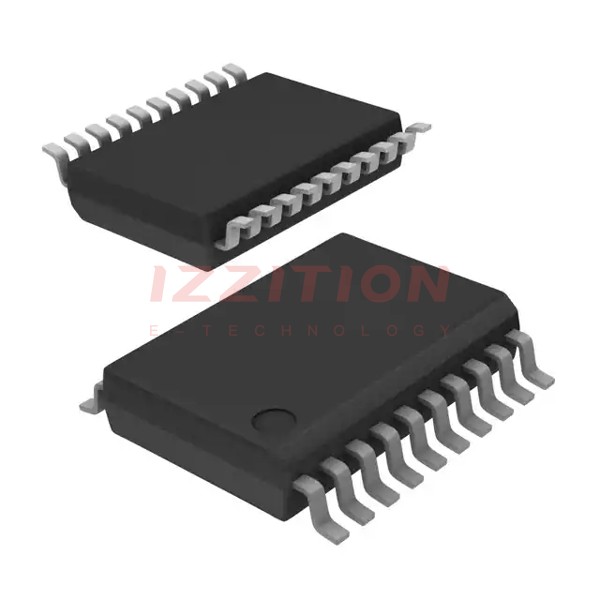

The AD7948BRS-REEL is a 12-bit, single-channel digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is packaged in a 20-pin SSOP (Shrink Small Outline Package) and is RoHS compliant. It is designed for high-performance applications requiring precise analog signal generation.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Number of Channels | 1 |
| Package Type | 20-SSOP (0.209", 5.30mm Width) |
| RoHS Status | ROHS3 Compliant |
| Category | Data Acquisition - DAC |
Key Features
- High-resolution 12-bit DAC for precise analog signal generation.
- Single-channel configuration for simplicity and cost-effectiveness.
- Compact 20-pin SSOP package suitable for space-constrained designs.
- RoHS compliance ensures environmental sustainability.
- High-performance characteristics make it suitable for a wide range of applications.
Applications
The AD7948BRS-REEL is versatile and can be used in various applications, including:
- Data acquisition systems
- Industrial control systems
- Medical devices
- Aerospace and defense systems
- Automotive systems
Q & A
- What is the resolution of the AD7948BRS-REEL DAC? The AD7948BRS-REEL has a resolution of 12 bits.
- How many channels does the AD7948BRS-REEL support? The AD7948BRS-REEL is a single-channel DAC.
- What is the package type of the AD7948BRS-REEL? The AD7948BRS-REEL is packaged in a 20-pin SSOP.
- What are some common applications for the AD7948BRS-REEL? Common applications include data acquisition systems, industrial control systems, medical devices, aerospace and defense systems, and automotive systems.
- Where can I find the datasheet for the AD7948BRS-REEL? The datasheet can be found on the official Analog Devices Inc. website or through various electronic component distributors.
- What is the width of the SSOP package? The SSOP package has a width of 5.30mm (0.209").
- Is the AD7948BRS-REEL suitable for high-performance applications? Yes, the AD7948BRS-REEL is designed for high-performance applications.
- Can I purchase the AD7948BRS-REEL from authorized distributors? Yes, the AD7948BRS-REEL can be purchased from authorized distributors such as Heisener, JAK Electronics, and Xecor.
- What category does the AD7948BRS-REEL fall under? The AD7948BRS-REEL falls under the category of Data Acquisition - DAC.
