AD7927BRU-REEL
  • Share:

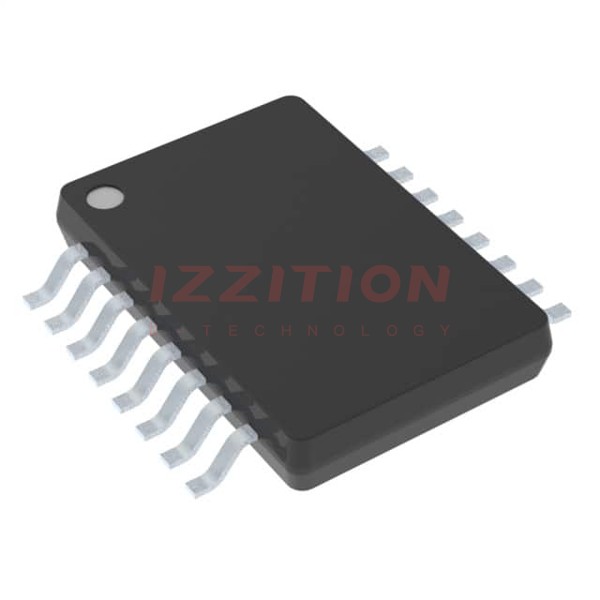

Analog Devices Inc. AD7927BRU-REEL

Manufacturer No:
AD7927BRU-REEL
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Description:
IC ADC 12BIT 8CH W/SEQ 20TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AD7927BRU-REEL is a 12-bit, successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for high-speed and low-power applications, making it suitable for a variety of industrial, medical, and consumer electronics. The AD7927BRU-REEL is available in a 20-lead TSSOP (Thin Shrink Small Outline Package) surface mount package, which is compact and easy to integrate into different system designs.

Key Specifications

ParameterValue
Resolution12 bits
Conversion TypeSuccessive Approximation Register (SAR)
Package Type20-TSSOP Surface Mount
Operating Temperature Range-40°C to +85°C
Supply Voltage2.7V to 5.5V
Throughput RateUp to 1 MSPS (Mega Samples Per Second)
InterfaceSPI-compatible serial interface

Key Features

  • High-speed conversion rate of up to 1 MSPS
  • Low power consumption, suitable for battery-powered devices
  • Compact 20-lead TSSOP package for space-efficient designs
  • SPI-compatible serial interface for easy communication with microcontrollers and other digital systems
  • Operating temperature range from -40°C to +85°C, making it suitable for various environmental conditions

Applications

  • Industrial automation and control systems
  • Medical devices such as patient monitoring systems and diagnostic equipment
  • Consumer electronics including audio and video devices
  • Aerospace and defense systems requiring high reliability and performance
  • Automotive systems, including sensor interfaces and data acquisition

Q & A

  1. What is the resolution of the AD7927BRU-REEL ADC?
    The AD7927BRU-REEL has a resolution of 12 bits.
  2. What is the conversion type of the AD7927BRU-REEL?
    The AD7927BRU-REEL uses a successive approximation register (SAR) conversion type.
  3. What is the package type of the AD7927BRU-REEL?
    The AD7927BRU-REEL is packaged in a 20-lead TSSOP surface mount package.
  4. What is the operating temperature range of the AD7927BRU-REEL?
    The operating temperature range is from -40°C to +85°C.
  5. What is the supply voltage range for the AD7927BRU-REEL?
    The supply voltage range is from 2.7V to 5.5V.
  6. What is the maximum throughput rate of the AD7927BRU-REEL?
    The maximum throughput rate is up to 1 MSPS (Mega Samples Per Second).
  7. What type of interface does the AD7927BRU-REEL use?
    The AD7927BRU-REEL uses an SPI-compatible serial interface.
  8. Is the AD7927BRU-REEL suitable for battery-powered devices?
    Yes, the AD7927BRU-REEL is suitable for battery-powered devices due to its low power consumption.
  9. What are some common applications of the AD7927BRU-REEL?
    Common applications include industrial automation, medical devices, consumer electronics, aerospace, and automotive systems.
  10. Where can I find detailed specifications and datasheets for the AD7927BRU-REEL?
    Detailed specifications and datasheets can be found on the official Analog Devices website or through authorized distributors like Digi-Key, Mouser, and HKin.com.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):-
Number of Inputs:-
Input Type:-
Data Interface:-
Configuration:-
Ratio - S/H:ADC:-
Number of A/D Converters:-
Architecture:-
Reference Type:-
Voltage - Supply, Analog:-
Voltage - Supply, Digital:-
Features:-
Operating Temperature:-
Package / Case:20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:20-TSSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
203

Please send RFQ , we will respond immediately.

Same Series
CBC46W4S100T2X
CBC46W4S100T2X
CONN D-SUB RCPT 46POS CRIMP
RD15S10HV50/AA
RD15S10HV50/AA
CONN D-SUB RCPT 15POS CRIMP
CBC13W3S10HE2X/AA
CBC13W3S10HE2X/AA
CONN D-SUB RCPT 13POS CRIMP
DD26S2S00X
DD26S2S00X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0T0
DD26S2S0T0
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V30/AA
DD26S200V30/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0V5X
DD26S2S0V5X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50TX
DD26S2S50TX
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S10HE0/AA
DD26S10HE0/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD26S10HV50/AA
DD26S10HV50/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD26S20WTX
DD26S20WTX
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S5W0X/AA
DD26S2S5W0X/AA
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number AD7927BRU-REEL AD7927BRUZ-REEL
Manufacturer Analog Devices Inc. Analog Devices Inc.
Product Status Obsolete Active
Number of Bits 12 12
Sampling Rate (Per Second) - 200k
Number of Inputs - 8
Input Type - Single Ended
Data Interface - SPI, DSP
Configuration - MUX-S/H-ADC
Ratio - S/H:ADC - 1:1
Number of A/D Converters - 1
Architecture - SAR
Reference Type - External
Voltage - Supply, Analog - 2.7V ~ 5.25V
Voltage - Supply, Digital - 2.7V ~ 5.25V
Features - -
Operating Temperature - -40°C ~ 85°C
Package / Case 20-TSSOP (0.173", 4.40mm Width) 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-TSSOP 20-TSSOP
Mounting Type Surface Mount Surface Mount
