Overview

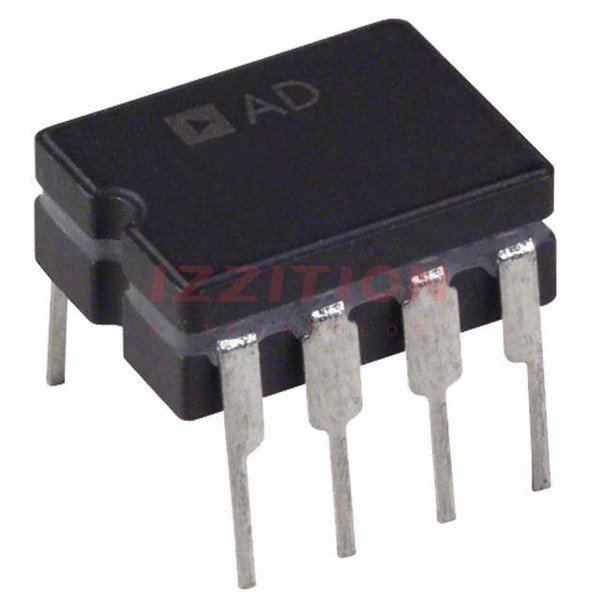

The AD7896SQ is a 12-bit, single-channel, successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This component operates within a voltage range of 2.7 V to 5.5 V and is known for its high-speed conversion capability, making it suitable for various data acquisition applications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Conversion Time | 8 μs |
| Supply Voltage | 2.7 V to 5.5 V |
| Sampling Rate | Up to 100 kSPS |
| Interface | Serial |
| Package Type | 8-Pin CDIP Tube |
Key Features
- High-speed conversion: 8 μs conversion time
- Low power consumption: Suitable for battery-powered devices
- Wide supply voltage range: 2.7 V to 5.5 V
- Serial interface: Facilitates easy communication with microcontrollers
- High accuracy: 12-bit resolution ensures precise data acquisition
Applications
- Data acquisition systems
- Medical devices
- Industrial control systems
- Automotive systems
- Portable and battery-powered devices
Q & A
- What is the resolution of the AD7896SQ ADC?
The AD7896SQ has a resolution of 12 bits. - What is the conversion time of the AD7896SQ?
The conversion time is 8 μs. - What is the supply voltage range for the AD7896SQ?
The supply voltage range is from 2.7 V to 5.5 V. - What is the maximum sampling rate of the AD7896SQ?
The maximum sampling rate is up to 100 kSPS. - What type of interface does the AD7896SQ use?
The AD7896SQ uses a serial interface. - In what package type is the AD7896SQ available?
The AD7896SQ is available in an 8-Pin CDIP Tube package. - Is the AD7896SQ suitable for battery-powered devices?
Yes, the AD7896SQ is suitable for battery-powered devices due to its low power consumption. - What are some common applications of the AD7896SQ?
Common applications include data acquisition systems, medical devices, industrial control systems, automotive systems, and portable devices. - Where can I find detailed specifications for the AD7896SQ?
Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Digi-Key and Mouser. - How accurate is the AD7896SQ?
The AD7896SQ offers high accuracy with its 12-bit resolution.
