Overview

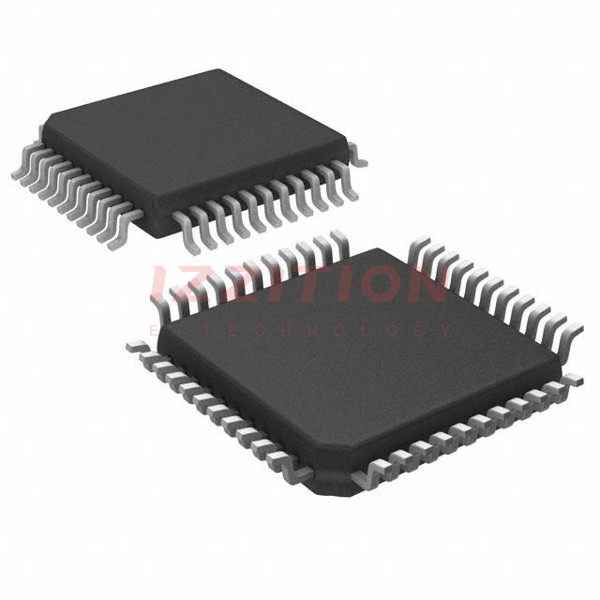

The AD7725BSZ is a 16-bit delta-sigma analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed for high-precision data conversion and is particularly suited for applications requiring low noise and high accuracy. The AD7725BSZ operates on a single 5V supply and features a serial interface for easy integration into various systems.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 16 bits |
| Operating Voltage | 5V |
| Operating Temperature | -40°C to 85°C |
| Package Type | 44-pin TSSOP |
| Pb-free Code | Yes |
| JESD-609 Code | e3 |
Key Features
- High-resolution 16-bit delta-sigma ADC for precise data conversion.
- Single 5V supply operation for simplified system design.
- Serial interface for easy communication with microcontrollers or other digital systems.
- Low noise and high accuracy, making it suitable for demanding applications.
- Wide operating temperature range of -40°C to 85°C.
Applications
The AD7725BSZ is versatile and can be used in a variety of applications, including:
- Industrial process control systems.
- Medical devices requiring high precision and low noise.
- Aerospace and defense systems where reliability and accuracy are critical.
- Automotive systems, especially those requiring robust operation over a wide temperature range.
- Test and measurement equipment.
Q & A
- What is the resolution of the AD7725BSZ ADC?
The AD7725BSZ has a resolution of 16 bits. - What is the operating voltage of the AD7725BSZ?
The AD7725BSZ operates on a single 5V supply. - What is the operating temperature range of the AD7725BSZ?
The operating temperature range is -40°C to 85°C. - What type of package does the AD7725BSZ come in?
The AD7725BSZ comes in a 44-pin TSSOP package. - Is the AD7725BSZ Pb-free?
Yes, the AD7725BSZ is Pb-free. - What is the JESD-609 code for the AD7725BSZ?
The JESD-609 code for the AD7725BSZ is e3. - What interface does the AD7725BSZ use for communication?
The AD7725BSZ uses a serial interface for communication. - What are some typical applications of the AD7725BSZ?
The AD7725BSZ is used in industrial process control, medical devices, aerospace and defense systems, automotive systems, and test and measurement equipment. - Why is the AD7725BSZ suitable for high-precision applications?
The AD7725BSZ is suitable for high-precision applications due to its low noise and high accuracy. - Where can I find detailed specifications and datasheets for the AD7725BSZ?
Detailed specifications and datasheets can be found on the official Analog Devices website or through authorized distributors like Digi-Key, Mouser, and Arrow Electronics.
