Overview

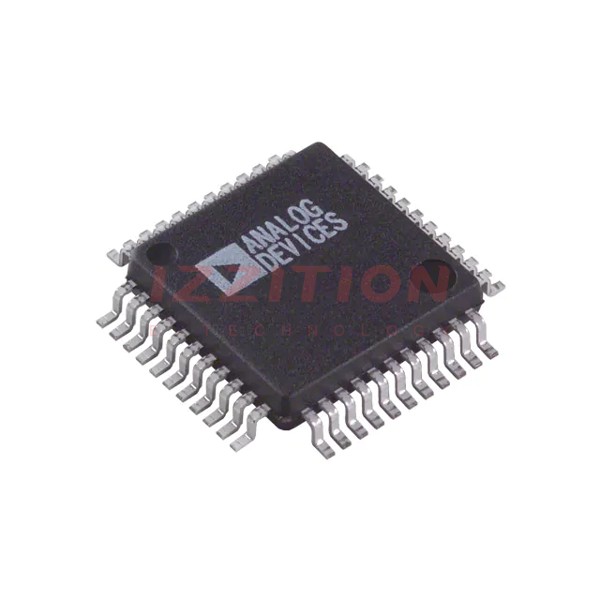

The AD7723BSZ-REEL is a 16-bit, sigma-delta Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. This component operates from a single 5 V supply and is housed in a 44-lead Metric Quad Flat Package (MQFP). The AD7723 is designed to provide high precision and flexibility, making it suitable for a variety of applications requiring accurate analog-to-digital conversion.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Bits | 16 | |
| Sampling Rate | 19.2 Msps | |
| Input Range | Bipolar, Unipolar | |
| Interface | Parallel, SPI, Serial | |
| Integral Nonlinearity (INL) | 2 LSB | |
| Differential Nonlinearity (DNL) | 1 LSB | |
| Supply Voltage | 4.75 V to 5.25 V | V |
| Package | 44-QFP (MQFP) | |
| Operating Temperature Range | -40°C to +85°C | °C |
Key Features
- Continuous Sampling: The AD7723 continuously samples the analog input, eliminating the need for an external sample-and-hold circuit.
- On-Chip Filtering: The component includes a finite impulse response (FIR) digital filter, which can be programmed to have either low-pass or band-pass frequency responses.
- High Oversampling Ratio: This reduces the external anti-alias requirements to first order in most cases.
- Flexible Interface: Supports parallel, SPI, and serial interfaces for versatile communication options.
- On-Chip Voltage Reference: A 2.5 V voltage reference is available on-chip, or an external reference can be used.
- Power-Down Mode: Reduces idle power consumption to 200 µW.
- Dual Input Modes: Allows for both unipolar and bipolar input ranges.
Applications
- Industrial Automation: Suitable for precision measurement and control systems.
- Medical Devices: Used in medical equipment requiring high accuracy and reliability.
- Aerospace and Defense: Applicable in various military and aerospace applications where precision and durability are critical.
- Test and Measurement: Ideal for use in precision measurement instruments and data acquisition systems.
- Automotive Systems: Can be used in automotive sensors and control systems requiring high accuracy.
Q & A
- What is the resolution of the AD7723BSZ-REEL ADC?
The AD7723BSZ-REEL is a 16-bit ADC.
- What is the sampling rate of the AD7723BSZ-REEL?
The sampling rate is up to 19.2 Msps.
- What types of input ranges does the AD7723BSZ-REEL support?
The AD7723BSZ-REEL supports both unipolar and bipolar input ranges.
- What interfaces are available on the AD7723BSZ-REEL?
The component supports parallel, SPI, and serial interfaces.
- What is the supply voltage range for the AD7723BSZ-REEL?
The supply voltage range is from 4.75 V to 5.25 V.
- Does the AD7723BSZ-REEL have an on-chip voltage reference?
Yes, it has an on-chip 2.5 V voltage reference, or an external reference can be used.
- What is the operating temperature range of the AD7723BSZ-REEL?
The operating temperature range is from -40°C to +85°C.
- How does the AD7723BSZ-REEL reduce anti-alias requirements?
The on-chip filtering combined with a high oversampling ratio reduces the external anti-alias requirements to first order in most cases.
- Does the AD7723BSZ-REEL have a power-down mode?
Yes, it has a power-down mode that reduces idle power consumption to 200 µW.
- What package type is the AD7723BSZ-REEL available in?
The AD7723BSZ-REEL is available in a 44-lead Metric Quad Flat Package (MQFP).
