AD7707BRUZ
  • Share:

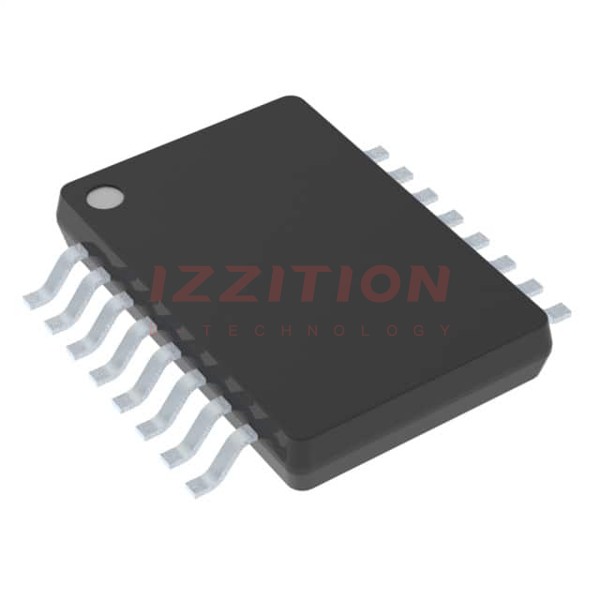

Analog Devices Inc. AD7707BRUZ

Manufacturer No:
AD7707BRUZ
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
IC ADC 16BIT SIGMA-DELTA 20TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AD7707BRUZ, produced by Analog Devices Inc., is a comprehensive analog front end designed for low frequency measurement applications. This 3-channel device is capable of accepting both low-level input signals directly from transducers and high-level signals up to ±10 V, and it produces a serial digital output. It utilizes a Σ-Δ (Sigma-Delta) conversion technique to achieve up to 16 bits of no missing codes performance. The AD7707 features a programmable gain front end and an on-chip digital filter, allowing for adjustable filter cutoff and output update rates. It operates from a single supply voltage ranging from 2.7 V to 3.3 V or 4.75 V to 5.25 V, making it versatile for various system requirements.

Key Specifications

Parameter Description
Number of Channels 3
Input Channels 2 low level pseudo differential, 1 high level, 1 differential reference
Input Signal Ranges Low level: 0 mV to 20 mV, 0 V to 2.5 V; High level: ±10 V, ±5 V, 0 V to 10 V, 0 V to 5 V
Resolution Up to 16 bits, no missing codes
Supply Voltage 2.7 V to 3.3 V or 4.75 V to 5.25 V
Power Dissipation Less than 1 mW at 3 V
Standby Current Less than 8 μA
Operating Temperature -40°C to +85°C
Package 20-lead TSSOP, 20-lead SOIC (Wide)

Key Features

  • Programmable gain front end with gains from 1 to 128
  • 3-wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP
  • On-chip digital filter with programmable cutoff and output update rate
  • Self-calibration and system calibration options to eliminate gain and offset errors
  • Low power consumption with CMOS construction
  • Ability to buffer the analog input
  • Excellent static performance specifications with ±0.003% accuracy and low rms noise

Applications

The AD7707BRUZ is ideal for use in smart systems, microcontroller-based systems, and DSP-based systems. It is particularly suited for low frequency measurement applications such as those involving strain gauges, transducers, and other sensors. Its low power consumption and high accuracy make it a reliable choice for industrial, medical, and automotive applications.

Q & A

  1. What is the resolution of the AD7707BRUZ?

    The AD7707BRUZ has a resolution of up to 16 bits with no missing codes.

  2. What are the input signal ranges for the AD7707BRUZ?

    The device can handle low-level input signals from 0 mV to 20 mV and high-level signals up to ±10 V.

  3. What are the supply voltage options for the AD7707BRUZ?

    The AD7707BRUZ operates from a single supply voltage ranging from 2.7 V to 3.3 V or 4.75 V to 5.25 V.

  4. What is the power dissipation of the AD7707BRUZ?

    The power dissipation is less than 1 mW at 3 V.

  5. What are the package options for the AD7707BRUZ?

    The device is available in 20-lead TSSOP and 20-lead SOIC (Wide) packages.

  6. Does the AD7707BRUZ support self-calibration?

    Yes, the AD7707BRUZ supports self-calibration and system calibration to eliminate gain and offset errors.

  7. What is the operating temperature range of the AD7707BRUZ?

    The operating temperature range is -40°C to +85°C.

  8. Is the AD7707BRUZ compatible with various serial interfaces?

    Yes, it is compatible with SPI, QSPI, MICROWIRE, and DSP interfaces.

  9. What are some typical applications of the AD7707BRUZ?

    It is used in smart systems, microcontroller-based systems, DSP-based systems, and applications involving strain gauges and transducers.

  10. How does the AD7707BRUZ handle standby power consumption?

    The standby current is less than 8 μA.

Product Attributes

Number of Bits:16
Sampling Rate (Per Second):500
Number of Inputs:1, 2
Input Type:Pseudo-Differential, Single Ended
Data Interface:SPI, DSP
Configuration:MUX-PGA-ADC
Ratio - S/H:ADC:-
Number of A/D Converters:1
Architecture:Sigma-Delta
Reference Type:External
Voltage - Supply, Analog:2.7V ~ 3.3V, 5V
Voltage - Supply, Digital:2.7V ~ 3.3V, 5V
Features:PGA
Operating Temperature:-40°C ~ 85°C
Package / Case:20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:20-TSSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$17.13
56

Please send RFQ , we will respond immediately.

Same Series
AD7707BRUZ
AD7707BRUZ
IC ADC 16BIT SIGMA-DELTA 20TSSOP
AD7707BRZ
AD7707BRZ
IC ADC 16BIT SIGMA-DELTA 20SOIC
AD7707BRUZ-REEL7
AD7707BRUZ-REEL7
IC ADC 16BIT SIGMA-DELTA 20TSSOP
AD7707BRZ-REEL7
AD7707BRZ-REEL7
IC ADC 16BIT SIGMA-DELTA 20SOIC
AD7707BRU
AD7707BRU
IC ADC 16BIT SIGMA-DELTA 20TSSOP
AD7707BRU-REEL7
AD7707BRU-REEL7
IC ADC 16BIT SIGMA-DELTA 20TSSOP
AD7707BRUZ-REEL
AD7707BRUZ-REEL
IC ADC 16BIT SIGMA-DELTA 20TSSOP
AD7707BRZ-REEL
AD7707BRZ-REEL
IC ADC 16BIT SIGMA-DELTA 20SOIC

Similar Products

Part Number AD7707BRUZ AD7708BRUZ AD7709BRUZ AD7707BRZ AD7705BRUZ AD7706BRUZ AD7707BRU
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active Active Active Obsolete
Number of Bits 16 16 16 16 16 16 16
Sampling Rate (Per Second) 500 1.37k 105 500 500 500 500
Number of Inputs 1, 2 4, 8 2, 4 1, 2 2 3 1, 2
Input Type Pseudo-Differential, Single Ended Differential, Pseudo-Differential, Single Ended Differential, Pseudo-Differential Pseudo-Differential, Single Ended Differential Pseudo-Differential Pseudo-Differential, Single Ended
Data Interface SPI, DSP SPI, DSP SPI, DSP SPI, DSP SPI, DSP SPI, DSP SPI, DSP
Configuration MUX-PGA-ADC MUX-PGA-ADC MUX-PGA-ADC MUX-PGA-ADC MUX-PGA-ADC MUX-PGA-ADC MUX-PGA-ADC
Ratio - S/H:ADC - - - - - - -
Number of A/D Converters 1 1 1 1 1 1 1
Architecture Sigma-Delta Sigma-Delta Sigma-Delta Sigma-Delta Sigma-Delta Sigma-Delta Sigma-Delta
Reference Type External External External External External External External
Voltage - Supply, Analog 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V
Voltage - Supply, Digital 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V 2.7V ~ 3.3V, 5V
Features PGA PGA PGA PGA PGA PGA PGA
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 20-TSSOP (0.173", 4.40mm Width) 28-TSSOP (0.173", 4.40mm Width) 24-TSSOP (0.173", 4.40mm Width) 20-SOIC (0.295", 7.50mm Width) 16-TSSOP (0.173", 4.40mm Width) 16-TSSOP (0.173", 4.40mm Width) 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-TSSOP 28-TSSOP 24-TSSOP 20-SOIC 16-TSSOP 16-TSSOP 20-TSSOP
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
