Overview

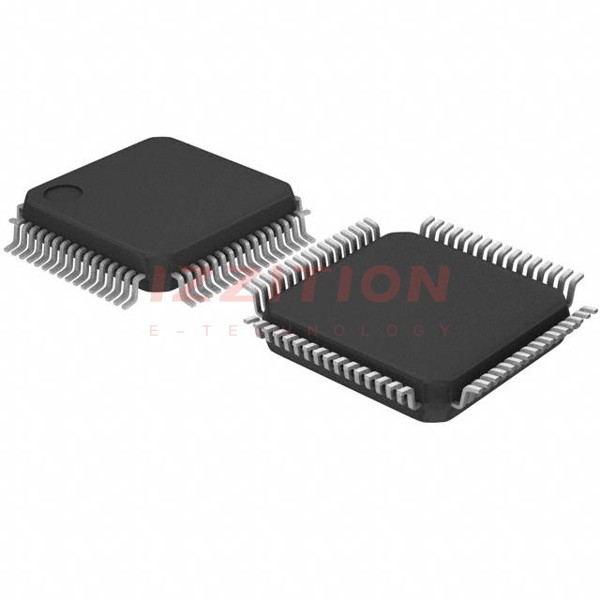

The AD7656A-1BSTZ is a high-performance, 16-bit, 6-channel analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed for simultaneous sampling and features a bipolar input range, making it suitable for a variety of data acquisition applications. The ADC operates at a sampling rate of 250 kSPS and is housed in a 64-lead Low Profile Quad Flat Package (LQFP) with dimensions of 10x10 mm.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 16 bits |
| Number of Channels | 6 |
| Sampling Rate | 250 kSPS |
| Input Range | Bipolar |
| Operating Temperature | -40°C to +85°C |
| Package Type | 64-Lead LQFP (10x10 mm) |
Key Features
- Simultaneous sampling of all six channels
- High-speed conversion rate of 250 kSPS
- Bipolar input range for versatile application use
- Low power consumption
- Compact 64-lead LQFP package
Applications
The AD7656A-1BSTZ is suitable for various data acquisition and measurement applications, including industrial control systems, medical devices, and test and measurement equipment. Its simultaneous sampling capability makes it particularly useful in applications where multiple channels need to be sampled at the same time, such as in audio and vibration analysis.
Q & A
- What is the resolution of the AD7656A-1BSTZ ADC?
The AD7656A-1BSTZ has a resolution of 16 bits. - How many input channels does the AD7656A-1BSTZ have?
The AD7656A-1BSTZ has 6 input channels. - What is the sampling rate of the AD7656A-1BSTZ?
The sampling rate is 250 kSPS. - What is the input range of the AD7656A-1BSTZ?
The input range is bipolar. - What is the operating temperature range of the AD7656A-1BSTZ?
The operating temperature range is -40°C to +85°C. - In what package is the AD7656A-1BSTZ available?
The AD7656A-1BSTZ is available in a 64-lead Low Profile Quad Flat Package (LQFP) with dimensions of 10x10 mm. - Is the AD7656A-1BSTZ suitable for simultaneous sampling?
Yes, the AD7656A-1BSTZ is designed for simultaneous sampling of all six channels. - What are some typical applications of the AD7656A-1BSTZ?
Typical applications include industrial control systems, medical devices, and test and measurement equipment. - Where can I find detailed specifications for the AD7656A-1BSTZ?
Detailed specifications can be found in the datasheet available on Analog Devices' official website and other electronic component distributors like Digi-Key and Mouser. - What is the power consumption of the AD7656A-1BSTZ?
The power consumption details can be found in the datasheet, but it is generally designed for low power consumption.
