AD7623ACPZRL
  • Share:

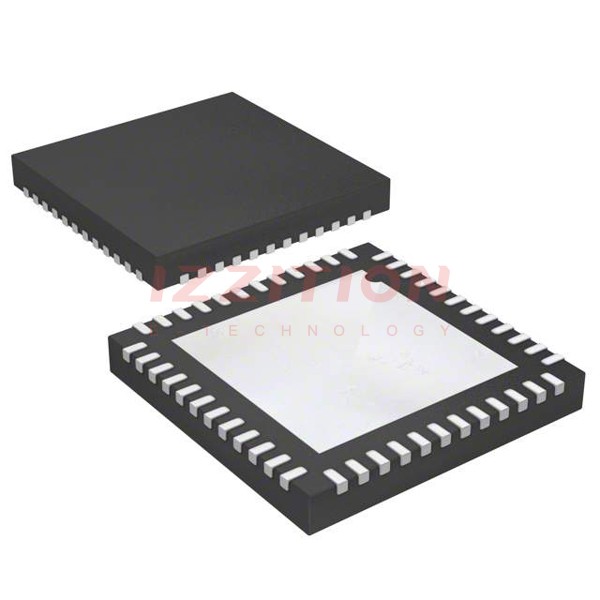

Analog Devices Inc. AD7623ACPZRL

Manufacturer No:
AD7623ACPZRL
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Description:
IC ADC 16BIT SAR 48LFCSP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AD7623ACPZRL is a 16-bit, 1.33 MSPS (Mega Samples Per Second), charge redistribution Successive Approximation Register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This ADC operates from a single 2.5 V power supply and is designed for high-speed and low-power applications. It features an internal conversion clock, an internal reference with a buffer, error correction circuits, and both serial and parallel system interface ports. The device is available in a 48-lead lead frame chip-scale package (LFCSP_VQ) and operates over a temperature range of −40°C to +85°C, making it suitable for a wide range of environments.

Key Specifications

ParameterMinTypMaxUnit
Resolution16--Bits
Analog Input Voltage Range-VREF-+VREFV
Operating Input Voltage (VIN+, VIN- to AGND)-0.1-AVDDV
Throughput Speed-1.33-MSPS
Complete Cycle Time-750-ns
Integral Linearity Error (VREF = 2.048 V)-2-+2LSB
Differential Linearity Error (VREF = 2.048 V)-1-+2LSB
Power Supply Voltage (AVDD, DVDD)-2.5-V
Power Dissipation (Typical)-45-mW

Key Features

  • Fast Throughput: The AD7623 operates at a throughput rate of 1.33 MSPS, making it suitable for high-speed applications.
  • Superior Linearity: The ADC has no missing 16-bit codes and excellent integral and differential linearity error specifications.
  • Internal Reference: It includes a 2.048 V internal reference with a typical drift of ±7 ppm/°C.
  • Single-Supply Operation: The device operates from a single 2.5 V power supply and dissipates power that scales with throughput, ideal for battery-powered applications.
  • Flexible Interface: Offers both serial and parallel interface options, compatible with 2.5 V, 3.3 V, or 5 V logic.

Applications

The AD7623ACPZRL is suitable for a variety of applications, including but not limited to:

  • Medical Devices: High-speed data acquisition in medical imaging and diagnostic equipment.
  • Industrial Automation: Fast and accurate data conversion in industrial control systems.
  • Aerospace and Defense: Low-power, high-reliability ADCs for various military and aerospace applications.
  • Portable Instruments: Battery-powered devices requiring low power consumption and high-speed data conversion.

Q & A

  1. What is the resolution of the AD7623ACPZRL ADC?
    The AD7623ACPZRL has a resolution of 16 bits.
  2. What is the operating temperature range of the AD7623ACPZRL?
    The device operates from −40°C to +85°C.
  3. What is the typical power dissipation of the AD7623ACPZRL?
    The typical power dissipation is 45 mW.
  4. Does the AD7623ACPZRL have an internal reference?
    Yes, it includes a 2.048 V internal reference.
  5. What are the available interface options for the AD7623ACPZRL?
    The device offers both serial and parallel interface options.
  6. What is the throughput rate of the AD7623ACPZRL?
    The throughput rate is 1.33 MSPS.
  7. What type of package is the AD7623ACPZRL available in?
    The device is available in a 48-lead lead frame chip-scale package (LFCSP_VQ).
  8. Is the AD7623ACPZRL suitable for battery-powered applications?
    Yes, it is ideal for battery-powered applications due to its power consumption that scales with throughput.
  9. Does the AD7623ACPZRL have any missing codes?
    No, the AD7623ACPZRL has no missing 16-bit codes.
  10. What is the typical drift of the internal reference?
    The typical drift of the internal reference is ±7 ppm/°C).

Product Attributes

Number of Bits:16
Sampling Rate (Per Second):1.33M
Number of Inputs:1
Input Type:Differential
Data Interface:SPI, Parallel, DSP
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:2.37V ~ 2.63V
Voltage - Supply, Digital:2.37V ~ 2.63V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:48-VFQFN Exposed Pad, CSP
Supplier Device Package:48-LFCSP-VQ (7x7)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
157

Please send RFQ , we will respond immediately.

Same Series
AD7623ASTZ
AD7623ASTZ
IC ADC 16BIT SAR 48LQFP
AD7623ASTZRL
AD7623ASTZRL
IC ADC 16BIT SAR 48LQFP
AD7623ACPZ
AD7623ACPZ
IC ADC 16BIT SAR 48LFCSP

Similar Products

Part Number AD7623ACPZRL AD7653ACPZRL AD7621ACPZRL
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Obsolete Active Obsolete
Number of Bits 16 16 16
Sampling Rate (Per Second) 1.33M 1M 3M
Number of Inputs 1 1 1
Input Type Differential Pseudo-Differential Differential
Data Interface SPI, Parallel, DSP SPI, Parallel, DSP SPI, Parallel, DSP
Configuration S/H-ADC S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1
Number of A/D Converters 1 1 1
Architecture SAR SAR SAR
Reference Type External, Internal External, Internal External, Internal
Voltage - Supply, Analog 2.37V ~ 2.63V 5V 2.37V ~ 2.63V
Voltage - Supply, Digital 2.37V ~ 2.63V 5V 2.37V ~ 2.63V
Features - - -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 48-VFQFN Exposed Pad, CSP 48-VFQFN Exposed Pad, CSP 48-VFQFN Exposed Pad, CSP
Supplier Device Package 48-LFCSP-VQ (7x7) 48-LFCSP-VQ (7x7) 48-LFCSP-VQ (7x7)
Mounting Type Surface Mount Surface Mount Surface Mount
