Overview
The AD7616-PBSTZ is a 16-channel, 16-bit data acquisition system (DAS) produced by Analog Devices Inc. This device supports dual simultaneous sampling of 16 channels and operates from a single 5 V analog supply and a 2.3 V to 3.6 V VDRIVE supply. It is designed to accommodate true bipolar input signals of ±10 V, ±5 V, and ±2.5 V, making it versatile for various industrial and instrumentation applications. The AD7616-P features high signal-to-noise ratio (SNR) performance, with up to 90.5 dB SNR at 1 MSPS and 92 dB SNR with an oversampling ratio (OSR) of 2.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 16 |
| Resolution | 16-bit |
| Input Ranges | ±10 V, ±5 V, ±2.5 V |
| Analog Supply Voltage | 5 V |
| VDRIVE Supply Voltage | 2.3 V to 3.6 V |
| Sampling Rate | Up to 1 MSPS per channel pair |
| SNR | 90.5 dB at 1 MSPS, 92 dB with OSR of 2 |
| Analog Input Impedance | 1 MΩ |
| Input Clamp Protection | Up to ±21 V |
| Package Type | 80-Lead LQFP (14mm x 14mm) |
| Operating Temperature Range | -40°C to +125°C |
Key Features
- Dual simultaneous sampling of 16 channels
- Independently selectable channel input ranges
- True bipolar input signals: ±10 V, ±5 V, ±2.5 V
- Single 5 V analog supply and 2.3 V to 3.6 V VDRIVE supply
- Fully integrated data acquisition solution with on-chip filtering and reference buffer
- Analog input clamp protection up to ±21 V
- High input impedance (1 MΩ) and first-order antialiasing analog filter
- Dual 16-bit SAR ADC with flexible digital filter and oversampling capability
- High-speed parallel digital interface with optional CRC error checking
- Flexible sequencer with burst mode and hardware/software configuration
Applications
- Power line monitoring
- Protective relays
- Multiphase motor control
- Instrumentation and control systems
- Data acquisition systems (DASs)
Q & A
- What is the resolution of the AD7616-PBSTZ? The AD7616-PBSTZ has a 16-bit resolution.
- What are the input voltage ranges supported by the AD7616-PBSTZ? The device supports true bipolar input signals of ±10 V, ±5 V, and ±2.5 V.
- What is the maximum sampling rate of the AD7616-PBSTZ? The maximum sampling rate is up to 1 MSPS per channel pair.
- What is the signal-to-noise ratio (SNR) of the AD7616-PBSTZ? The SNR is 90.5 dB at 1 MSPS and 92 dB with an oversampling ratio (OSR) of 2.

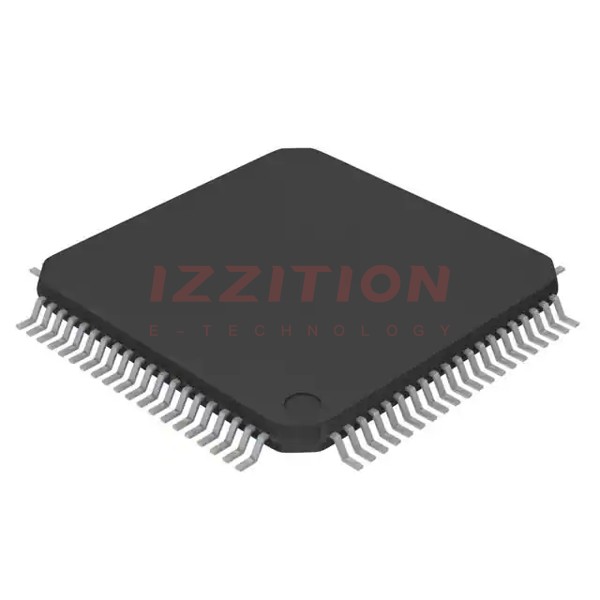

- What type of package does the AD7616-PBSTZ come in? The device comes in an 80-Lead LQFP (14mm x 14mm) package.
- What is the operating temperature range of the AD7616-PBSTZ? The operating temperature range is -40°C to +125°C.
- Does the AD7616-PBSTZ have input clamp protection? Yes, it has analog input clamp protection up to ±21 V.
- What is the analog input impedance of the AD7616-PBSTZ? The analog input impedance is 1 MΩ.
- Does the AD7616-PBSTZ require external bipolar supplies? No, it operates from a single 5 V supply and does not require external bipolar supplies.
- What type of digital interface does the AD7616-PBSTZ have? The device has a high-speed parallel digital interface with optional CRC error checking.
