Overview

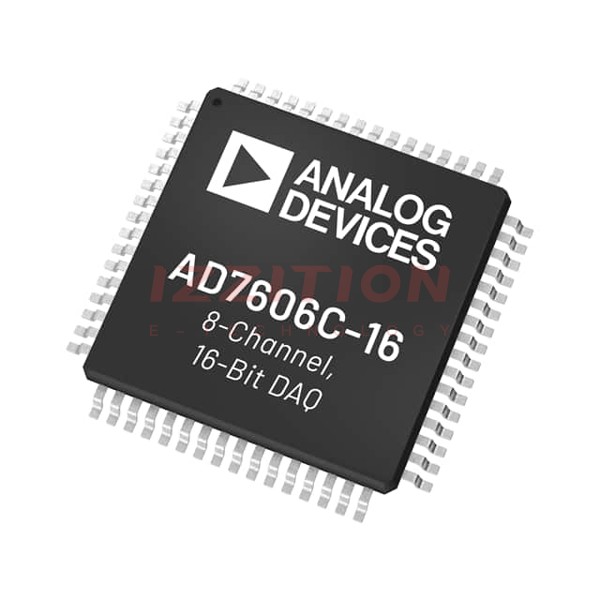

The AD7606C-18BSTZ is an 18-bit, simultaneous sampling, analog-to-digital data acquisition system (DAS) produced by Analog Devices Inc. This component features eight channels, each equipped with analog input clamp protection, a programmable gain amplifier (PGA), a low-pass filter (LPF), and an 18-bit successive approximation register (SAR) analog-to-digital converter (ADC). It operates from a single 5 V supply and includes a flexible digital filter, a low drift 2.5 V precision reference, and a reference buffer to drive the ADC. The device supports both parallel and serial interfaces, making it versatile for various applications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 18 bits |
| Number of Channels | 8 |
| Sampling Rate | 1 MSPS (all channels) |
| Input Range | Various ranges supported with PGA |
| Input Clamp Protection | Up to ±21 V |
| Supply Voltage | 5 V |
| Package Type | 64-Lead LQFP (10mm x 10mm) |
| Interface | Parallel and serial interfaces |
Key Features
- Simultaneous sampling of all eight channels
- Programmable gain amplifier (PGA) in each channel
- Low-pass filter (LPF) in each channel
- 18-bit successive approximation register (SAR) ADC
- Flexible digital filter to improve noise performance at lower throughput rates
- Low drift 2.5 V precision reference and reference buffer
- Analog input clamp protection up to ±21 V
- Single 5 V supply operation, eliminating the need for bipolar supplies
- High input impedance, reducing the need for external driver op amps
Applications
The AD7606C-18 is suitable for a variety of applications requiring high-precision, simultaneous sampling of multiple analog inputs. These include:
- Industrial process control systems
- Medical devices and diagnostic equipment
- Aerospace and defense systems
- Automotive systems, particularly those requiring high accuracy and reliability
- Data acquisition systems in scientific and research environments
Q & A
- What is the resolution of the AD7606C-18?
The AD7606C-18 has an 18-bit resolution.
- How many channels does the AD7606C-18 have?
The AD7606C-18 has eight channels.
- What is the sampling rate of the AD7606C-18?
The AD7606C-18 can sample at a rate of 1 MSPS for all channels.
- What is the input clamp protection voltage of the AD7606C-18?
The input clamp protection can tolerate voltages up to ±21 V.
- What type of interfaces does the AD7606C-18 support?
The AD7606C-18 supports both parallel and serial interfaces.
- What is the supply voltage requirement for the AD7606C-18?
The AD7606C-18 operates from a single 5 V supply.
- What kind of package does the AD7606C-18 come in?
The AD7606C-18 is packaged in a 64-Lead LQFP (10mm x 10mm).
- Does the AD7606C-18 require external driver op amps?
No, the AD7606C-18 does not require external driver op amps due to its high input impedance and single supply operation.
- What is the purpose of the flexible digital filter in the AD7606C-18?
The flexible digital filter can be used to improve noise performance at lower throughput rates.
