Overview
The AD7579SE/883B, manufactured by Analog Devices Inc., is a 10-bit analog-to-digital converter (ADC) designed to convert continuous analog signals into discrete digital signals. This integrated circuit is part of the data conversion ICs family and is particularly useful in various applications requiring precise analog-to-digital conversion. The ADC process involves sampling, holding, quantization, and encoding, enabling the conversion of analog signals for processing and analysis by digital systems.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | AD7579SE/883B |

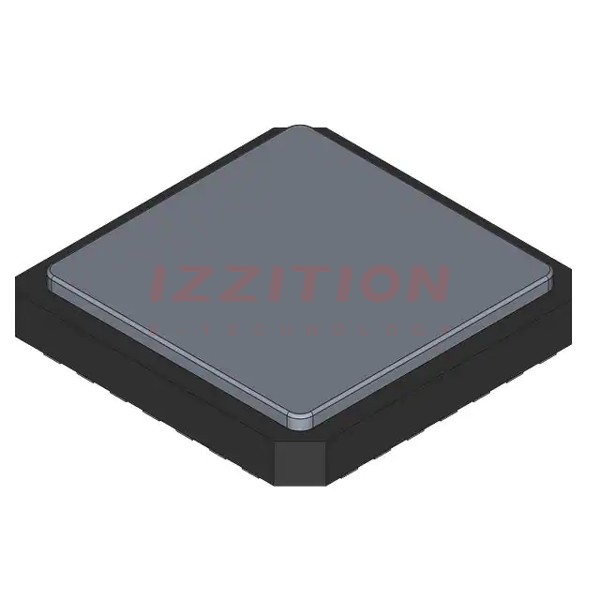

| Package | 20-CLCC (9x9) |
| Number of Bits | 10 |
| Number of A/D Converters | 1 |
| Input Type | Differential |
| Maximum Number of Inputs | 2 |
| Data Interface | Parallel |
| Sample Rate | 50 kSPS |
| Operating Temperature | -55°C to 125°C |
| Supply Voltage | 5V |
Key Features
- SAR (Successive Approximation Register) architecture
- S/H-ADC (Sample and Hold - Analog to Digital Converter) configuration
- High conversion rate of 50 kSPS
- Supports differential input with a maximum of 2 inputs
- Parallel data interface for efficient data transfer
- Advanced 20-CLCC packaging for improved application and heat dissipation
Applications
- Communication systems
- Industrial control systems
- Measuring instruments
- Consumer electronics
- Data acquisition systems
- Medical instruments
- Audio processing systems
Q & A
- What is the primary function of the AD7579SE/883B? The primary function of the AD7579SE/883B is to convert analog signals into digital signals for processing and analysis by digital systems.
- What is the resolution of the AD7579SE/883B? The AD7579SE/883B is a 10-bit analog-to-digital converter.
- How many A/D converters does the AD7579SE/883B have? The AD7579SE/883B has 1 A/D converter.
- What type of input does the AD7579SE/883B support? The AD7579SE/883B supports differential inputs with a maximum of 2 inputs.
- What is the sample rate of the AD7579SE/883B? The sample rate of the AD7579SE/883B is 50 kSPS.
- What is the operating temperature range of the AD7579SE/883B? The operating temperature range of the AD7579SE/883B is -55°C to 125°C.
- What type of packaging does the AD7579SE/883B use? The AD7579SE/883B uses 20-CLCC (9x9) packaging.
- In which applications is the AD7579SE/883B commonly used? The AD7579SE/883B is commonly used in communication systems, industrial control systems, measuring instruments, consumer electronics, data acquisition systems, medical instruments, and audio processing systems.
- What is the supply voltage for the AD7579SE/883B? The supply voltage for the AD7579SE/883B is 5V.
- What architecture does the AD7579SE/883B use? The AD7579SE/883B uses SAR (Successive Approximation Register) architecture.
