Overview
The AD7572ALNZ03 is a 12-bit successive approximation analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This component is designed for high-precision data acquisition and is suitable for various applications requiring accurate analog-to-digital conversion. The AD7572ALNZ03 features a parallel interface for word access, making it versatile for integration into different system architectures.
Key Specifications
| Specification | Value |
|---|---|
| Number of Bits | 12 |
| Number of Functions | 1 |
| Number of Channels | 1 |
| Interface Type | Parallel, Word Access |
| Supply Voltage | 5V |

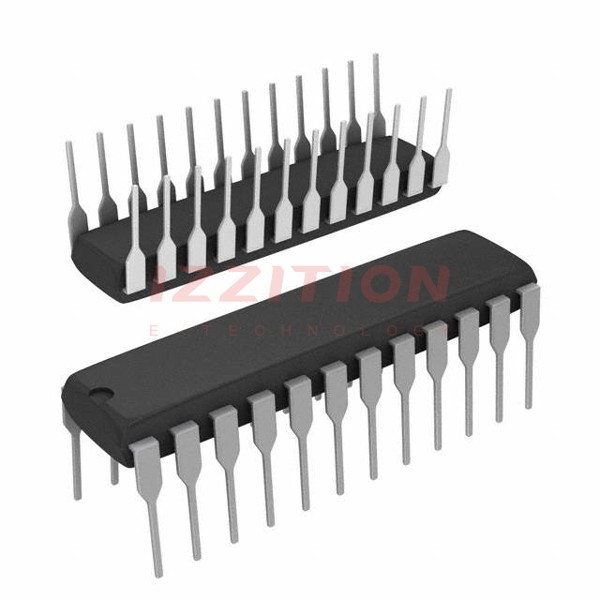

| Package Type | PDIP24 |
| Terminal Pitch | 2.54mm |
| Technology | CMOS |
Key Features
- High-resolution 12-bit successive approximation ADC
- Single-channel operation
- Parallel interface for word access, facilitating easy integration into various systems
- Operates on a single 5V supply voltage
- CMOS technology for low power consumption and high performance
- Available in PDIP24 package with a terminal pitch of 2.54mm
Applications
The AD7572ALNZ03 is suitable for a wide range of applications, including:
- Data acquisition systems
- Industrial control systems
- Medical devices requiring precise analog-to-digital conversion
- Aerospace and defense systems
- Automotive systems
Q & A
- What is the resolution of the AD7572ALNZ03 ADC?
The AD7572ALNZ03 has a resolution of 12 bits. - How many channels does the AD7572ALNZ03 support?
The AD7572ALNZ03 supports a single channel. - What type of interface does the AD7572ALNZ03 use?
The AD7572ALNZ03 uses a parallel interface for word access. - What is the supply voltage for the AD7572ALNZ03?
The AD7572ALNZ03 operates on a single 5V supply voltage. - What package type is the AD7572ALNZ03 available in?
The AD7572ALNZ03 is available in a PDIP24 package. - What is the terminal pitch of the AD7572ALNZ03?
The terminal pitch of the AD7572ALNZ03 is 2.54mm. - What technology is used in the AD7572ALNZ03?
The AD7572ALNZ03 uses CMOS technology. - What are some common applications of the AD7572ALNZ03?
The AD7572ALNZ03 is commonly used in data acquisition systems, industrial control systems, medical devices, aerospace and defense systems, and automotive systems. - Is the AD7572ALNZ03 RoHS compliant?
No, the AD7572ALNZ03 is not RoHS compliant. - Where can I purchase the AD7572ALNZ03?
The AD7572ALNZ03 can be purchased from various electronic component distributors such as Digi-Key, Heisener, and JAK Electronics.
