Overview
The AD7572AJRZ10-REEL7 is a high-performance, 12-bit successive approximation analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This component is designed for applications requiring high accuracy and reliability. It features a parallel interface for word access, making it suitable for a variety of data acquisition and control systems.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | AD7572AJRZ10-REEL7 |
| Description | 1-Channel Single ADC SAR 12-bit Parallel 24-Pin SOIC |
| Number of Bits | 12 |
| Number of Inputs | 1 |

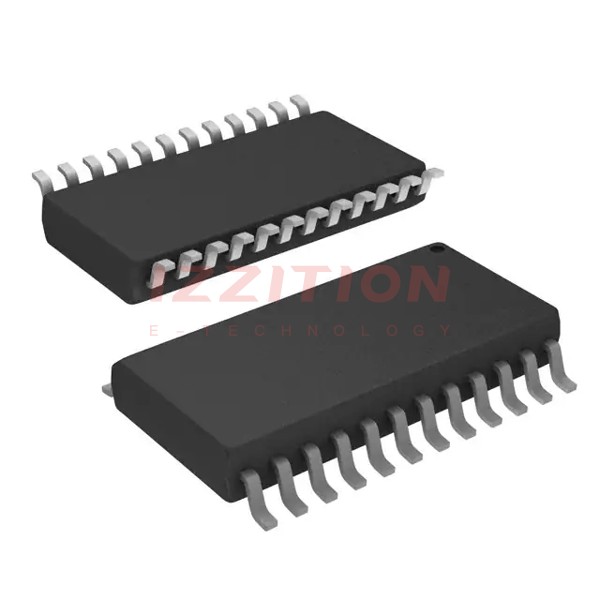

| Package Type | 24-SOIC (0.295", 7.50mm Width) |
| Interface | Parallel, Word Access |
| Technology | CMOS |
| RoHS Compliance | Yes |
Key Features
- High Accuracy: The AD7572AJRZ10-REEL7 offers high conversion accuracy with a 12-bit resolution.
- Successive Approximation Architecture: Utilizes a successive approximation register (SAR) architecture for efficient and accurate conversions.
- Parallel Interface: Features a parallel interface for word access, facilitating easy integration into various systems.
- CMOS Technology: Built using CMOS technology, which ensures low power consumption and high reliability.
- RoHS Compliance: Compliant with RoHS standards, making it suitable for use in environmentally friendly designs.
Applications
- Data Acquisition Systems: Ideal for applications requiring precise data acquisition and conversion.
- Industrial Control Systems: Suitable for use in industrial control systems where high accuracy and reliability are crucial.
- Medical Devices: Can be used in medical devices that require accurate analog-to-digital conversion.
- Aerospace and Defense: Applicable in aerospace and defense systems where high precision and reliability are essential.
Q & A
- What is the resolution of the AD7572AJRZ10-REEL7 ADC?
The AD7572AJRZ10-REEL7 has a 12-bit resolution.
- What type of interface does the AD7572AJRZ10-REEL7 use?
The AD7572AJRZ10-REEL7 uses a parallel interface for word access.
- Is the AD7572AJRZ10-REEL7 RoHS compliant?
Yes, the AD7572AJRZ10-REEL7 is RoHS compliant.
- What is the package type of the AD7572AJRZ10-REEL7?
The AD7572AJRZ10-REEL7 comes in a 24-SOIC package.
- What technology is used in the AD7572AJRZ10-REEL7?
The AD7572AJRZ10-REEL7 is built using CMOS technology.
- How many input channels does the AD7572AJRZ10-REEL7 have?
The AD7572AJRZ10-REEL7 has one input channel.
- What are some common applications of the AD7572AJRZ10-REEL7?
Common applications include data acquisition systems, industrial control systems, medical devices, and aerospace and defense systems.
- Where can I find detailed specifications for the AD7572AJRZ10-REEL7?
Detailed specifications can be found in the datasheet available on Mouser Electronics, Digi-Key, and other authorized distributors.
- Is the AD7572AJRZ10-REEL7 suitable for high-precision applications?
Yes, the AD7572AJRZ10-REEL7 is suitable for high-precision applications due to its high accuracy and reliability.
- Can the AD7572AJRZ10-REEL7 be used in environmentally friendly designs?
Yes, the AD7572AJRZ10-REEL7 is RoHS compliant, making it suitable for environmentally friendly designs.
