Overview

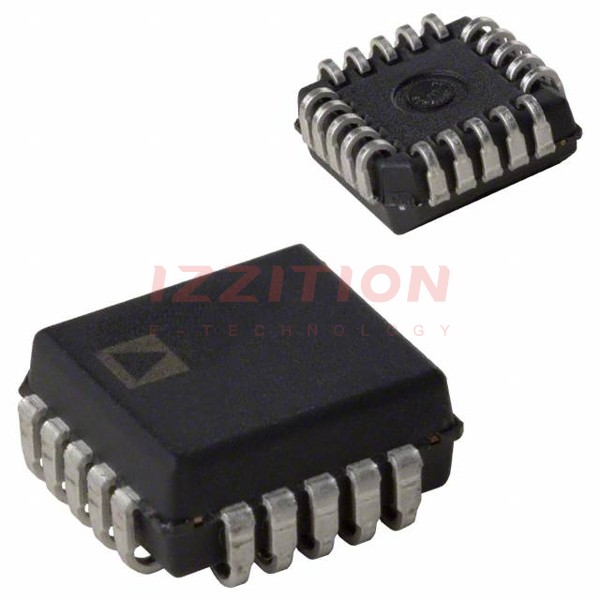

The AD7542JP-REEL is a high-performance 12-bit digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is designed for precision applications and is particularly suited for use with 4- or 8-bit microprocessors. It features a serial interface and is known for its high-speed and high-precision analog conversion capabilities.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Package | 20-LCC (J-Lead) |
| Resolution | 12 bit |
| Interface Type | SPI |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Mounting Style | Through Hole |
| Analog Supply Voltage | 5 V |
| Digital Supply Voltage | 5 V |
| Settling Time | 2 μs |
| Output Type | Current |
| DNL - Differential Nonlinearity | ±1 LSB |
| INL - Integral Nonlinearity | ±0.5 LSB |
Key Features
- High-speed and high-precision 12-bit digital-to-analog conversion.
- Serial interface compatible with SPI protocol.
- Operating temperature range from -40°C to +85°C.
- Low settling time of 2 μs.
- Current output type.
- Low differential nonlinearity (DNL) and integral nonlinearity (INL) for accurate conversions.
Applications
The AD7542JP-REEL is suitable for a variety of precision applications, including industrial control systems, medical devices, and other high-accuracy analog conversion needs. Its compatibility with 4- or 8-bit microprocessors makes it a versatile choice for various embedded systems and digital signal processing applications.
Q & A
- What is the resolution of the AD7542JP-REEL?
The AD7542JP-REEL has a resolution of 12 bits. - What type of interface does the AD7542JP-REEL use?
The AD7542JP-REEL uses a serial interface compatible with the SPI protocol. - What is the operating temperature range of the AD7542JP-REEL?
The operating temperature range is from -40°C to +85°C. - What is the settling time of the AD7542JP-REEL?
The settling time is 2 μs. - What type of output does the AD7542JP-REEL provide?
The output type is current. - What are the differential nonlinearity (DNL) and integral nonlinearity (INL) specifications of the AD7542JP-REEL?
The DNL is ±1 LSB, and the INL is ±0.5 LSB. - What is the package type of the AD7542JP-REEL?
The package type is 20-LCC (J-Lead). - Is the AD7542JP-REEL suitable for high-speed applications?
Yes, the AD7542JP-REEL is designed for high-speed digital-to-analog conversion. - What are some common applications of the AD7542JP-REEL?
Common applications include industrial control systems, medical devices, and other high-accuracy analog conversion needs. - What is the supply voltage requirement for the AD7542JP-REEL?
The analog and digital supply voltages are both 5 V.
