Overview
The AD7501JN, produced by Analog Devices Inc., is a monolithic CMOS, 8-channel analog multiplexer. This device is designed to switch one of eight inputs to a common output based on the state of three binary address lines and an 'enable' input. The AD7501JN is part of the AD7501 and AD7503 series, with the AD7503 being identical to the AD7501 except for the inverted 'enable' logic. This component is highly versatile and compatible with TTL/DTL and CMOS logic, making it suitable for a variety of analog switching applications.
Key Specifications

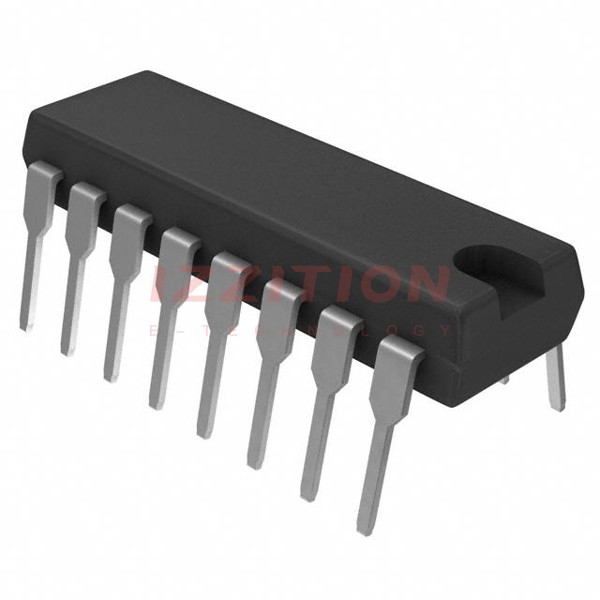

| Parameter | Value | Unit |
|---|---|---|
| Number of Channels | 8 | |
| Address Lines | 3 | |
| Enable Input Logic | LOW (AD7501), HIGH (AD7503) | |
| Power Dissipation | 30 | μW |
| RON (On Resistance) | 170 | Ω |
| Input Voltage Range (VIN) | 0 to 5.0 | V |
| Input Current (IIN) | 10 | nA (typ) |
| Input Capacitance (CIN) | 3 | pF (typ) |
| Switching Time (tON/tOFF) | 0.8 | μs (typ) |
| Package Type | 16-Lead PDIP |
Key Features
- DTL/TTL/CMOS direct interface, ensuring compatibility with various logic systems.
- Low power dissipation of 30 μW.
- Low on-resistance (RON) of 170 Ω.
- Fast switching times with tON and tOFF of 0.8 μs (typical).
- Available in standard 16-lead PDIP and surface mount packages.
- High input impedance and low input current.
Applications
The AD7501JN is suitable for a wide range of analog switching applications, including:
- Data acquisition systems.
- Automatic test equipment.
- Medical instrumentation.
- Aerospace and defense systems.
- Industrial control systems.
Q & A
- What is the primary function of the AD7501JN? The AD7501JN is an 8-channel analog multiplexer that switches one of eight inputs to a common output based on the state of three binary address lines and an 'enable' input.
- What is the difference between AD7501 and AD7503? The AD7503 is identical to the AD7501 except for the inverted 'enable' logic.
- What type of logic is the AD7501JN compatible with? The AD7501JN is compatible with TTL/DTL and CMOS logic.
- What is the power dissipation of the AD7501JN? The power dissipation is 30 μW.
- What is the on-resistance (RON) of the AD7501JN? The on-resistance (RON) is 170 Ω.
- What are the typical switching times for the AD7501JN? The typical switching times (tON and tOFF) are 0.8 μs.
- In what package types is the AD7501JN available? The AD7501JN is available in standard 16-lead PDIP and surface mount packages.
- What are some common applications of the AD7501JN? Common applications include data acquisition systems, automatic test equipment, medical instrumentation, aerospace and defense systems, and industrial control systems.
- What is the input voltage range for the AD7501JN? The input voltage range is 0 to 5.0 V.
- What is the typical input current (IIN) for the AD7501JN? The typical input current (IIN) is 10 nA.
