Overview

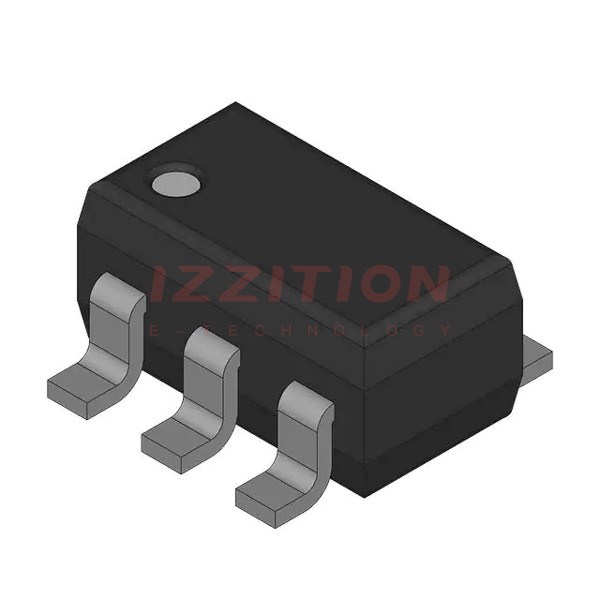

The AD7478ARTZ-REEL7-C is an 8-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC) produced by Analog Devices Inc. This component is designed for high-speed and low-power applications, making it suitable for a variety of industrial and consumer electronics. It features serial access, which allows for easy integration into systems with limited I/O pins.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 8 bits |
| Conversion Type | Successive Approximation Register (SAR) |
| Interface | Serial Access |
| Package Type | TSSOP-8 |
| Operating Temperature Range | -40°C to 85°C |
| Supply Voltage | 2.7V to 5.5V |
| Power Consumption | Low Power |
Key Features
- High-speed conversion rate
- Low power consumption
- Serial interface for reduced I/O pin count
- Compact TSSOP-8 package
- Wide operating temperature range (-40°C to 85°C)
- Flexible supply voltage range (2.7V to 5.5V)
Applications
- Industrial control systems
- Consumer electronics
- Medical devices
- Automotive systems
- Data acquisition systems
Q & A
- What is the resolution of the AD7478ARTZ-REEL7-C ADC?
The AD7478ARTZ-REEL7-C has an 8-bit resolution. - What type of conversion does the AD7478ARTZ-REEL7-C use?
The AD7478ARTZ-REEL7-C uses Successive Approximation Register (SAR) conversion. - What is the interface type of the AD7478ARTZ-REEL7-C?
The AD7478ARTZ-REEL7-C features a serial access interface. - What is the package type of the AD7478ARTZ-REEL7-C?
The AD7478ARTZ-REEL7-C comes in a TSSOP-8 package. - What is the operating temperature range of the AD7478ARTZ-REEL7-C?
The operating temperature range is -40°C to 85°C. - What is the supply voltage range for the AD7478ARTZ-REEL7-C?
The supply voltage range is 2.7V to 5.5V. - Is the AD7478ARTZ-REEL7-C suitable for low-power applications?
Yes, the AD7478ARTZ-REEL7-C is designed for low-power applications. - What are some common applications of the AD7478ARTZ-REEL7-C?
Common applications include industrial control systems, consumer electronics, medical devices, automotive systems, and data acquisition systems. - Where can I find detailed specifications for the AD7478ARTZ-REEL7-C?
Detailed specifications can be found on the official Analog Devices website or through authorized distributors like Digi-Key, Mouser, and Avnet. - How does the serial interface benefit the AD7478ARTZ-REEL7-C?
The serial interface reduces the number of I/O pins required, making it easier to integrate into systems with limited I/O capabilities.
