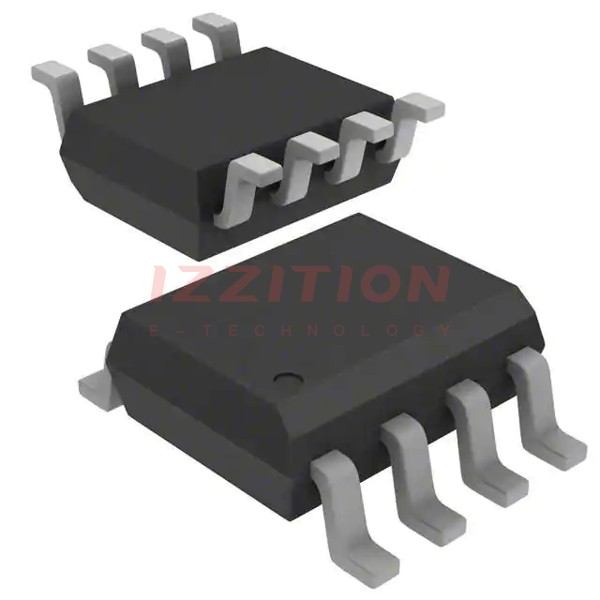

Analog Devices Inc. AD7450AR

Manufacturer No:
AD7450AR
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
IC ADC 12BIT DIFF-IN 1MSPS 8SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AD7450AR is a 12-bit, successive approximation analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed to provide high accuracy and efficiency in various data acquisition applications. It operates on a single supply voltage of either 3V or 5V and features a differential input, making it versatile for different signal types. The AD7450AR is available in SO-8 packages, which are compact and suitable for space-constrained designs.

Key Specifications

SpecificationValue
Resolution12 bits
Conversion Rate1 MSPS (Mega Samples Per Second)
Input TypeDifferential Input
Supply Voltage3V or 5V
Package TypeSO-8
InterfaceSerial Access
TechnologyCMOS

Key Features

  • High resolution of 12 bits for precise data conversion
  • Fast conversion rate of 1 MSPS for real-time data acquisition
  • Differential input for improved noise rejection and signal integrity
  • Single supply voltage operation (3V or 5V) for flexibility and power efficiency
  • Compact SO-8 package for space-saving designs
  • Serial access interface for easy communication with microcontrollers or other digital systems
  • CMOS technology for low power consumption and high reliability

Applications

The AD7450AR is suitable for a variety of applications requiring precise and efficient analog-to-digital conversion. These include:

  • Data acquisition systems
  • Industrial control systems
  • Medical devices
  • Aerospace and defense systems
  • Automotive systems
  • Consumer electronics requiring high accuracy and low power consumption

Q & A

  1. What is the resolution of the AD7450AR ADC?
    The AD7450AR has a resolution of 12 bits.
  2. What is the conversion rate of the AD7450AR?
    The conversion rate is 1 MSPS (Mega Samples Per Second).
  3. What type of input does the AD7450AR support?
    The AD7450AR supports differential input.
  4. What are the supply voltage options for the AD7450AR?
    The AD7450AR can operate on either 3V or 5V supply voltage.
  5. In what package is the AD7450AR available?
    The AD7450AR is available in an SO-8 package.
  6. What interface does the AD7450AR use for communication?
    The AD7450AR uses a serial access interface.
  7. What technology is used in the AD7450AR?
    The AD7450AR is based on CMOS technology.
  8. What are some common applications of the AD7450AR?
    Common applications include data acquisition systems, industrial control systems, medical devices, aerospace and defense systems, and automotive systems.
  9. Why is the differential input feature important?
    The differential input feature is important because it improves noise rejection and signal integrity.
  10. Is the AD7450AR suitable for low power applications?
    Yes, the AD7450AR is suitable for low power applications due to its CMOS technology and single supply voltage operation.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):1M
Number of Inputs:-
Input Type:-
Data Interface:SPI, DSP
Configuration:-
Ratio - S/H:ADC:-
Number of A/D Converters:1
Architecture:-
Reference Type:-
Voltage - Supply, Analog:-
Voltage - Supply, Digital:-
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
Mounting Type:Surface Mount
