Overview

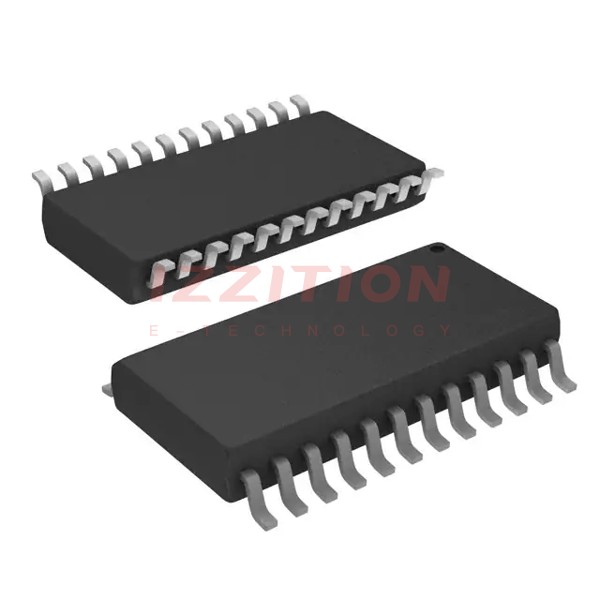

The AD7228ABR-REEL is a digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is part of the AD7228 series and is designed to provide high-performance conversion from digital to analog signals. The AD7228ABR-REEL is packaged in a 24-lead SOIC (Small Outline Integrated Circuit) package, making it suitable for a variety of applications where space is a concern.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 8 bits |
| Input Type | Parallel |
| Package Type | SOIC-24 |
| RoHS Compliance | Not Compliant |
| Operating Temperature Range | -40°C to +85°C (typical) |
Key Features
- High-speed digital-to-analog conversion
- 8-bit resolution for precise analog output
- Parallel input interface for easy integration with microcontrollers and other digital systems
- Compact SOIC-24 package for space-efficient designs
- Wide operating temperature range, making it suitable for various environmental conditions
Applications
The AD7228ABR-REEL is versatile and can be used in a variety of applications, including:
- Industrial control systems where precise analog outputs are required
- Aerospace and defense systems due to its wide operating temperature range
- Medical devices that require high accuracy and reliability
- Automotive systems for control and monitoring
- Audio and video equipment for signal processing
Q & A
- What is the resolution of the AD7228ABR-REEL?
The AD7228ABR-REEL has an 8-bit resolution. - What type of input interface does the AD7228ABR-REEL use?
The AD7228ABR-REEL uses a parallel input interface. - In what package is the AD7228ABR-REEL available?
The AD7228ABR-REEL is available in a 24-lead SOIC package. - Is the AD7228ABR-REEL RoHS compliant?
No, the AD7228ABR-REEL is not RoHS compliant. - What is the operating temperature range of the AD7228ABR-REEL?
The operating temperature range of the AD7228ABR-REEL is typically -40°C to +85°C. - What are some common applications of the AD7228ABR-REEL?
The AD7228ABR-REEL is commonly used in industrial control systems, aerospace and defense systems, medical devices, automotive systems, and audio/video equipment. - How does the AD7228ABR-REEL integrate with other digital systems?
The AD7228ABR-REEL integrates with other digital systems through its parallel input interface, making it easy to connect with microcontrollers and other digital components. - What are the key benefits of using the AD7228ABR-REEL in designs?
The key benefits include high-speed conversion, precise 8-bit resolution, compact packaging, and a wide operating temperature range. - Can the AD7228ABR-REEL be used in high-temperature environments?
Yes, the AD7228ABR-REEL can operate in environments with temperatures ranging from -40°C to +85°C. - Where can I find detailed specifications and datasheets for the AD7228ABR-REEL?
Detailed specifications and datasheets can be found on the official Analog Devices website or through authorized distributors like Heisener and GlobalSpec.
