Overview

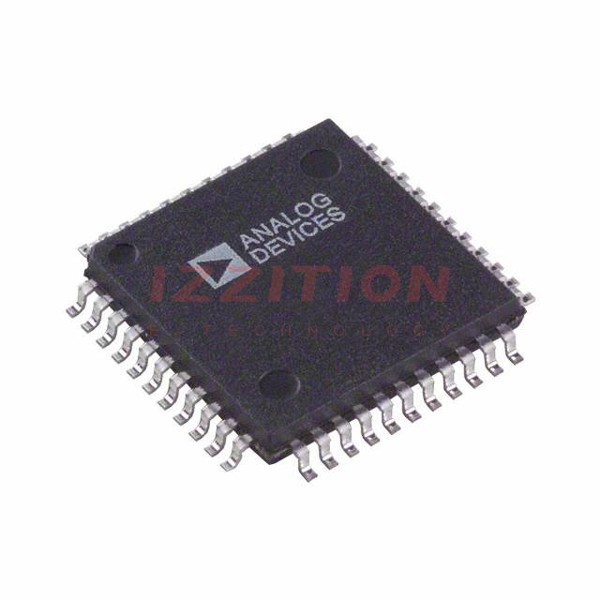

The AD6600ASTZ-REEL, manufactured by Analog Devices Inc., is a high-speed 11-bit analog-to-digital converter (ADC) designed for complex signal processing applications. This component boasts a sampling rate of 20 million samples per second (MSPS) and features a pipelined architecture, which enables high throughput and reliable data processing. The AD6600ASTZ is particularly suited for applications requiring fast, real-time data acquisition.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | AD6600ASTZ-REEL |
| Manufacturer | Analog Devices Inc. |
| Number of Bits | 11 |
| Sampling Rate | 20 MSPS |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Analog Supply Voltage | 5V |
| Digital Supply Voltage | 3V to 5.25V |
| Operational Temperature Range | -40°C to 85°C |
| Package Type | 44-LQFP |
Key Features
- High-Speed Sampling: 20 MSPS sampling rate, ideal for fast, real-time applications.
- Dual Differential Inputs: Enhances noise immunity and provides increased accuracy.
- Pipelined Architecture: Enables high-speed and reliable data processing.
- Internal Reference Voltage: Reduces the need for external components.
- Wide Operating Temperature Range: Suitable for industrial environments with a range of -40°C to 85°C.
- Flexible Supply Voltages: Supports a range of digital supply voltages from 3V to 5.25V.
- Efficient Packaging: 44-LQFP package is efficient for PCB design space and compatible with standard SMT processes.
Applications
- Telecommunications: Suitable for high-speed data acquisition in telecom systems.
- Medical Imaging Systems: Used in medical imaging for precise and fast data conversion.
- Digital Oscilloscopes: Ideal for high-speed signal capture and analysis.
- Radar and Satellite Systems: Utilized in radar and satellite systems for real-time signal processing.
- Instrumentation and Control Systems: Applied in various industrial control and instrumentation systems.
Q & A
- What is the sampling rate of the AD6600ASTZ?
The AD6600ASTZ has a sampling rate of 20 million samples per second (MSPS).
- How many bits of resolution does the AD6600ASTZ have?
The AD6600ASTZ has an 11-bit resolution.
- What type of inputs does the AD6600ASTZ support?
The AD6600ASTZ supports dual differential inputs.
- What is the data interface type of the AD6600ASTZ?
The AD6600ASTZ uses a parallel data output interface.
- What is the architecture of the AD6600ASTZ?
The AD6600ASTZ features a pipelined architecture.
- Does the AD6600ASTZ have an internal reference voltage?
Yes, the AD6600ASTZ has an internal reference voltage.
- What is the operational temperature range of the AD6600ASTZ?
The operational temperature range is from -40°C to 85°C.
- What is the package type of the AD6600ASTZ?
The AD6600ASTZ comes in a 44-LQFP package.
- Is the AD6600ASTZ compatible with various microcontrollers and digital processors?
Yes, it is compatible through a parallel interface.
- What are some typical applications of the AD6600ASTZ?
Typical applications include telecommunications, medical imaging systems, digital oscilloscopes, radar and satellite systems, and instrumentation and control systems.
