Overview

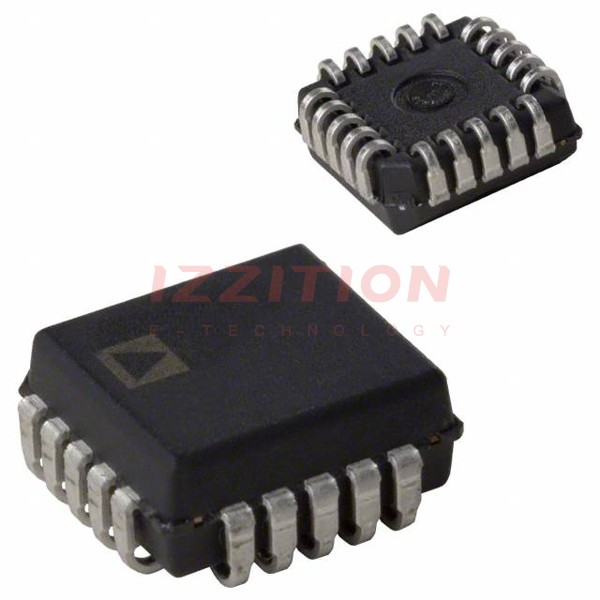

The AD641APZ is a high-performance, 250 MHz demodulating logarithmic amplifier produced by Analog Devices Inc. This component is designed to provide accurate and reliable signal processing in various RF and microwave applications. It features a successive detection logarithmic amplifier architecture, which ensures high accuracy and a wide dynamic range.
Key Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 250 MHz |
| Accuracy | 2.0 dB |
| Dynamic Range | 44 dB |
| Package Type | 8-Lead PDIP, 8-Lead SOIC |
| Operating Temperature Range | -40°C to +85°C |
Key Features
- Successive detection logarithmic amplifier architecture for high accuracy and wide dynamic range.
- High frequency operation up to 250 MHz.
- Low error of 2.0 dB.
- Wide dynamic range of 44 dB.
- Available in 8-Lead PDIP and 8-Lead SOIC packages.
Applications
- RF and microwave systems.
- Communications systems, including cellular and satellite communications.
- Radar systems.
- Instrumentation and test equipment.
- Wireless sensor networks.
Q & A
- What is the frequency range of the AD641APZ? The AD641APZ operates up to 250 MHz.
- What is the accuracy of the AD641APZ? The accuracy is 2.0 dB.
- What is the dynamic range of the AD641APZ? The dynamic range is 44 dB.
- In what packages is the AD641APZ available? It is available in 8-Lead PDIP and 8-Lead SOIC packages.
- What is the operating temperature range of the AD641APZ? The operating temperature range is -40°C to +85°C.
- What are the primary applications of the AD641APZ? The primary applications include RF and microwave systems, communications systems, radar systems, instrumentation, and wireless sensor networks.
- Who manufactures the AD641APZ? The AD641APZ is manufactured by Analog Devices Inc.
- Where can I find detailed specifications for the AD641APZ? Detailed specifications can be found in the datasheet available on Analog Devices' official website and other distributor websites like Heisener and JLCPCB.
- What is the architecture of the AD641APZ? The AD641APZ uses a successive detection logarithmic amplifier architecture.
- Is the AD641APZ suitable for high-frequency applications? Yes, it is suitable for high-frequency applications up to 250 MHz.
