Overview

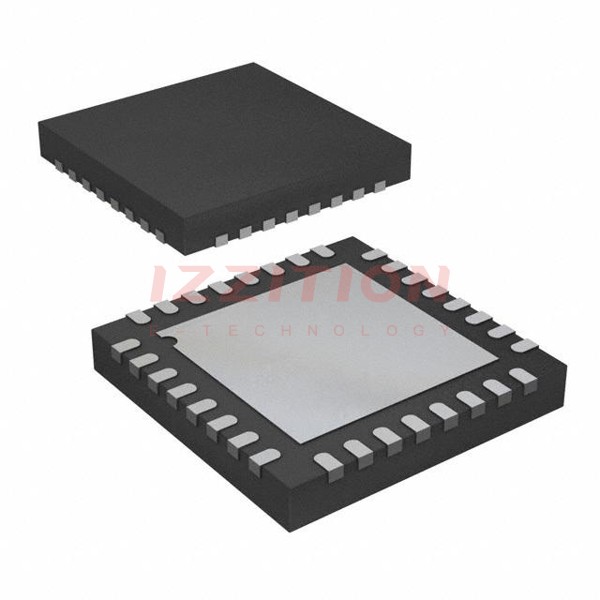

The AD5748ACPZ-RL7 is a single-channel, precision voltage/current output driver produced by Analog Devices Inc. This component is part of the AD5748 series, known for its low cost and high precision. It is designed to provide hardware or software programmable output ranges, making it versatile for various industrial and instrumentation applications.
Key Specifications
| Parameter | Value |
|---|---|
| Supply Voltage - Max | 48 V |
| Supply Voltage - Min | 12 V |
| Operating Supply Current | 5.2 mA |
| Minimum Operating Temperature | -40°C |
Key Features
- Single-channel, precision voltage/current output driver
- Hardware or software programmable output ranges
- Low cost and high precision
- Operating supply current of 5.2 mA
- Wide operating temperature range, down to -40°C
Applications
The AD5748ACPZ-RL7 is suitable for a variety of applications, including industrial control systems, process control, and instrumentation. It is particularly useful in scenarios where precise voltage or current output is required, such as in measurement and monitoring systems, automation, and data acquisition.
Q & A
- What is the maximum supply voltage for the AD5748ACPZ-RL7?
The maximum supply voltage is 48 V. - What is the minimum operating temperature for the AD5748ACPZ-RL7?
The minimum operating temperature is -40°C. - Can the output ranges of the AD5748ACPZ-RL7 be programmed?
Yes, the output ranges can be programmed using either hardware or software. - What is the typical operating supply current for the AD5748ACPZ-RL7?
The typical operating supply current is 5.2 mA. - What type of applications is the AD5748ACPZ-RL7 suitable for?
The AD5748ACPZ-RL7 is suitable for industrial control systems, process control, and instrumentation applications. - Who is the manufacturer of the AD5748ACPZ-RL7?
The manufacturer is Analog Devices Inc. - What is the significance of the 'RL7' suffix in the part number AD5748ACPZ-RL7?
The 'RL7' suffix typically indicates the packaging and reel size, but specific details should be checked with the manufacturer or datasheet. - How does the AD5748ACPZ-RL7 differ from other models in the AD5748 series?
The AD5748ACPZ-RL7 differs primarily in its packaging and possibly some specific features or configurations compared to other models in the series. - Where can I find detailed specifications and datasheets for the AD5748ACPZ-RL7?
Detailed specifications and datasheets can be found on the official Analog Devices website or through authorized distributors like Mouser and Digi-Key. - Is the AD5748ACPZ-RL7 available in different package types?
Yes, the AD5748 series is available in various package types, but the AD5748ACPZ-RL7 specifically refers to a particular package configuration.
