Overview

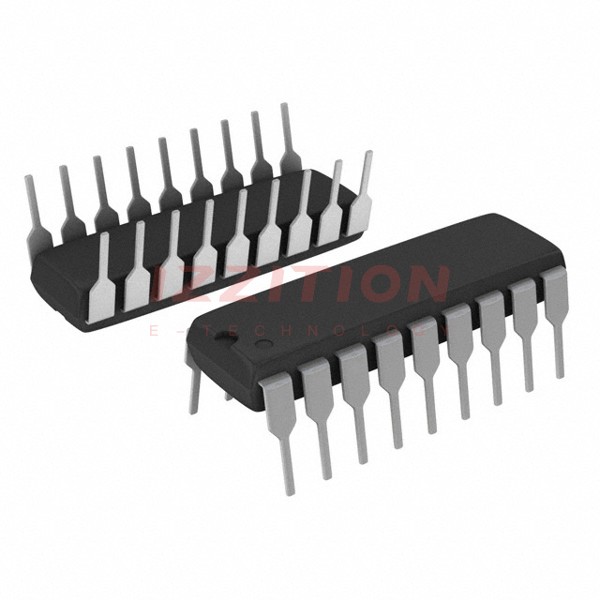

The AD571KD/+ from Analog Devices Inc. is a complete 10-bit successive approximation analog-to-digital converter (ADC). This device is designed to provide a full analog-to-digital conversion function without the need for external components. It operates using a +5 V and –15 V power supply, although the AD571K version can also operate with up to a +15 V supply, enabling direct interface with CMOS logic.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 10 bits |
| Conversion Method | Successive Approximation |
| Power Supply | +5 V and –15 V (AD571J, AD571S), up to +15 V (AD571K) |
| Input Range | 0 to +10 V |
| Accuracy | ±1/2 LSB (0.05%) |
| Conversion Time | Not specified, but typical for successive approximation ADCs |
| Logic Compatibility | CMOS logic compatible |
| Package | Varies by version (e.g., DIP, ceramic DIP) |
| Operating Temperature | Dependent on version, typically 0°C to +70°C |
Key Features
- No external components required for complete A/D conversion.
- Internal 10-bit current output DAC and successive approximation register (SAR).
- Data output available in three-state form.
- Power supply flexibility with options for +5 V and –15 V or up to +15 V for CMOS compatibility.
- High accuracy with ±1/2 LSB (0.05%) conversion accuracy.
- Input logic threshold adjustable based on V+ supply voltage.
Applications
The AD571KD/+ is suitable for various applications requiring precise analog-to-digital conversion, such as data acquisition systems, industrial control systems, medical devices, and any environment where accurate and reliable A/D conversion is necessary.
Q & A
- What is the resolution of the AD571KD/+?
The AD571KD/+ has a resolution of 10 bits. - What is the conversion method used by the AD571KD/+?
The conversion method is successive approximation. - What are the power supply requirements for the AD571KD/+?
The device requires a +5 V and –15 V power supply, although the AD571K version can operate with up to a +15 V supply. - What is the input range of the AD571KD/+?
The input range is 0 to +10 V. - What is the accuracy of the AD571KD/+?
The accuracy is ±1/2 LSB (0.05%). - Is the AD571KD/+ compatible with CMOS logic?
Yes, it is compatible with CMOS logic, especially the AD571K version. - What type of output does the AD571KD/+ provide?
The output is available in three-state form. - What are the typical operating temperatures for the AD571KD/+?
Typical operating temperatures depend on the version but generally range from 0°C to +70°C. - Does the AD571KD/+ require external components for A/D conversion?
No, it does not require external components for complete A/D conversion. - What are some common applications of the AD571KD/+?
Common applications include data acquisition systems, industrial control systems, and medical devices.
