Overview
The AD5590BBCZ is a versatile analog I/O port integrated circuit produced by Analog Devices Inc. This device is designed to provide a comprehensive solution for analog-to-digital and digital-to-analog conversions. It features 16 input channels and 16 output channels, making it suitable for a wide range of applications that require multiple analog inputs and outputs. The AD5590 operates from a single 4.5 V to 5.25 V supply and includes eight uncommitted amplifiers, enhancing its functionality and flexibility.
Key Specifications

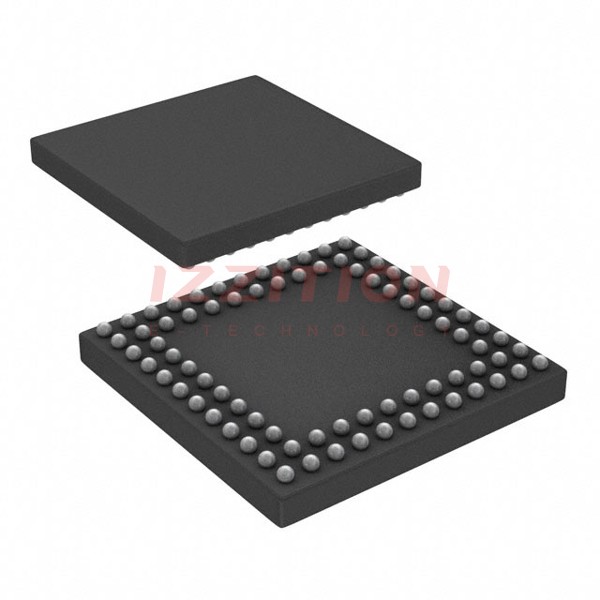

| Parameter | Specification |
|---|---|
| Input Channels | 16 channels, 12-bit successive approximation ADC |
| Conversion Rate | 1 MSPS |
| Input Range | 0 V to VREFA or 0 V to 2 × VREFA |
| Output Channels | 16 channels, 12-bit DACs |
| Reference Voltage | On-chip 2.5 V reference, external reference option |
| Supply Voltage | 4.5 V to 5.25 V |
| Operating Temperature | -40°C to +85°C |
| Package | 80-Ball CSP_BGA (10mm x 10mm) |
| Pins | 80 |
Key Features
- 16 input channels multiplexed into a 1 MSPS, 12-bit successive approximation ADC with a sequencer.
- 16 output channels with 12-bit DACs, divided into two groups of eight.
- On-chip 2.5 V reference, with the option to use external references.
- Hardware LDAC and LDAC override function for simultaneous output updates.
- Power-on reset circuit ensuring DAC outputs power up to 0 V.
- Power-down feature to reduce current consumption and software-selectable output loads.
- Eight uncommitted amplifiers.
- No pipeline delays associated with the ADC.
Applications
The AD5590BBCZ is suitable for various applications requiring multiple analog inputs and outputs, such as industrial control systems, medical devices, data acquisition systems, and automated test equipment. Its integrated amplifiers and flexible configuration make it an ideal choice for systems that need to handle a large number of analog signals efficiently.
Q & A
- What is the AD5590BBCZ?
The AD5590BBCZ is a 16-channel input and 16-channel output analog I/O port integrated circuit produced by Analog Devices Inc. - What is the conversion rate of the ADC in the AD5590BBCZ?
The ADC in the AD5590BBCZ has a conversion rate of 1 MSPS. - What is the input range for the ADC?
The input range for the ADC can be selected to be 0 V to VREFA or 0 V to 2 × VREFA. - How many DAC channels does the AD5590BBCZ have?
The AD5590BBCZ has 16 DAC channels, divided into two groups of eight. - What is the supply voltage range for the AD5590BBCZ?
The supply voltage range for the AD5590BBCZ is 4.5 V to 5.25 V. - What is the operating temperature range for the AD5590BBCZ?
The operating temperature range for the AD5590BBCZ is -40°C to +85°C. - What type of package does the AD5590BBCZ come in?
The AD5590BBCZ comes in an 80-Ball CSP_BGA package (10mm x 10mm). - Does the AD5590BBCZ have any power-down features?
Yes, the AD5590BBCZ has a power-down feature that reduces current consumption and provides software-selectable output loads. - Can the DAC outputs be updated simultaneously?
Yes, the DAC outputs can be updated simultaneously using the LDAC function. - What is the purpose of the sequencer in the AD5590BBCZ?
The sequencer allows for a preprogrammed selection of channels to be converted sequentially.
