Overview

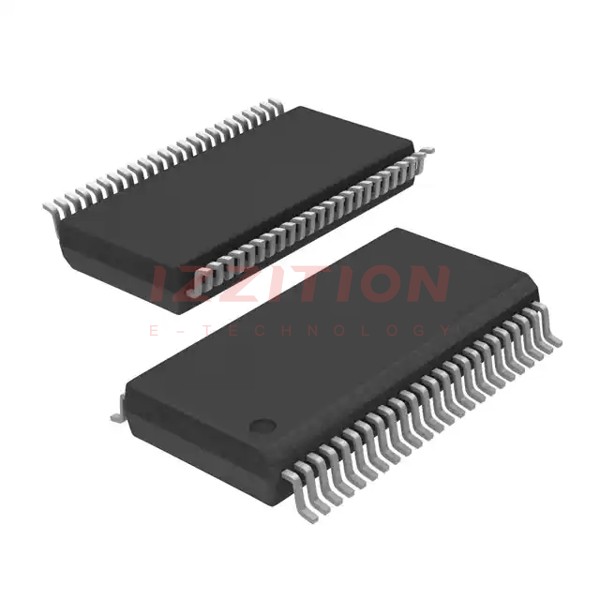

The AD5583YRV-REEL is a Digital-to-Analog Converter (DAC) produced by Analog Devices Inc. This component is part of the company's extensive range of data acquisition and conversion products. The AD5583YRV-REEL is designed to provide high accuracy and reliability in various applications requiring digital-to-analog conversion.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 10 bits |
| Package Type | TSSOP |
| Number of Channels | Single Channel |
| Interface Type | Serial (SPI-compatible) |
| Voltage Supply | Single Supply: 2.7V to 5.5V |
| Operating Temperature Range | -40°C to 85°C |
| Settling Time |
Key Features
- High accuracy and linearity with a 10-bit resolution.
- Serial interface compatible with SPI, QSPI, and MICROWIRE protocols.
- Single supply operation from 2.7V to 5.5V.
- Low power consumption, making it suitable for battery-powered applications.
- Compact TSSOP package for space-efficient designs.
- Wide operating temperature range from -40°C to 85°C.
Applications
The AD5583YRV-REEL is versatile and can be used in a variety of applications, including:
- Industrial control systems.
- Aerospace and defense systems.
- Medical devices requiring precise analog output.
- Automotive systems.
- Consumer electronics such as audio and video equipment.
Q & A
- What is the resolution of the AD5583YRV-REEL DAC?
The AD5583YRV-REEL has a resolution of 10 bits. - What is the package type of the AD5583YRV-REEL?
The package type is TSSOP. - What is the interface type of the AD5583YRV-REEL?
The interface type is serial, compatible with SPI, QSPI, and MICROWIRE protocols. - What is the voltage supply range for the AD5583YRV-REEL?
The voltage supply range is from 2.7V to 5.5V. - What is the operating temperature range of the AD5583YRV-REEL?
The operating temperature range is from -40°C to 85°C. - How many channels does the AD5583YRV-REEL have?
The AD5583YRV-REEL is a single-channel DAC. - What is the typical settling time of the AD5583YRV-REEL?
The typical settling time is 10 μs. - In what types of applications is the AD5583YRV-REEL commonly used?
The AD5583YRV-REEL is commonly used in industrial control systems, aerospace and defense systems, medical devices, automotive systems, and consumer electronics. - Is the AD5583YRV-REEL suitable for battery-powered applications?
Yes, the AD5583YRV-REEL is suitable for battery-powered applications due to its low power consumption. - Where can I find more detailed specifications and datasheets for the AD5583YRV-REEL?
You can find detailed specifications and datasheets on the official Analog Devices Inc. website or through authorized distributors like Digi-Key, Mouser, and Newark.
