Overview

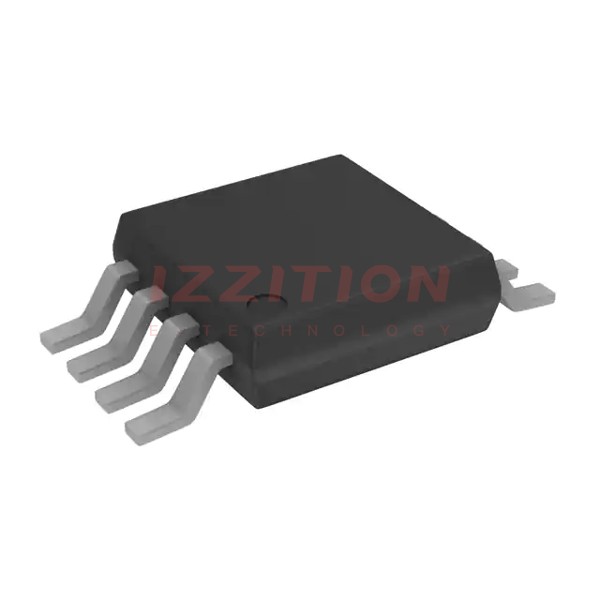

The AD5553CRM-REEL7 is a 14-bit digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is designed for high-precision analog output and is suitable for various applications requiring accurate digital-to-analog conversion. The AD5553CRM-REEL7 features a serial input interface and is packaged in an 8-lead MSOP (Micro Small Outline Package), making it compact and versatile for different system designs.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 14 bits |
| Package Type | 8-Lead MSOP |
| Operating Temperature Range | −40°C to +85°C |
| Interface | Serial Input |
Key Features
- High-resolution 14-bit digital-to-analog conversion
- Serial input interface for easy integration with microcontrollers and other digital systems
- Compact 8-lead MSOP package for space-efficient designs
- Wide operating temperature range from −40°C to +85°C, making it suitable for various environmental conditions
Applications
- Data acquisition systems
- Industrial control systems
- Aerospace and defense applications
- Medical devices requiring high precision analog output
- Automotive systems where reliable and accurate analog signals are necessary
Q & A
- What is the resolution of the AD5553CRM-REEL7 DAC?
The AD5553CRM-REEL7 has a resolution of 14 bits. - What type of package does the AD5553CRM-REEL7 come in?
The AD5553CRM-REEL7 is packaged in an 8-lead MSOP. - What is the operating temperature range of the AD5553CRM-REEL7?
The operating temperature range is from −40°C to +85°C. - What type of interface does the AD5553CRM-REEL7 use?
The AD5553CRM-REEL7 uses a serial input interface. - Where can I find detailed specifications for the AD5553CRM-REEL7?
Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Digi-Key and Mouser. - Is the AD5553CRM-REEL7 suitable for high-precision applications?
Yes, the AD5553CRM-REEL7 is designed for high-precision applications requiring accurate digital-to-analog conversion. - Can the AD5553CRM-REEL7 be used in industrial control systems?
Yes, the AD5553CRM-REEL7 is suitable for industrial control systems due to its reliability and wide operating temperature range. - Is the AD5553CRM-REEL7 compatible with microcontrollers?
Yes, the serial input interface of the AD5553CRM-REEL7 makes it compatible with microcontrollers. - What are some common applications of the AD5553CRM-REEL7?
Common applications include data acquisition systems, aerospace and defense, medical devices, and automotive systems. - How do I ensure proper thermal management for the AD5553CRM-REEL7?
Proper thermal management can be ensured by following the guidelines provided in the datasheet and using appropriate thermal design techniques.
