Overview

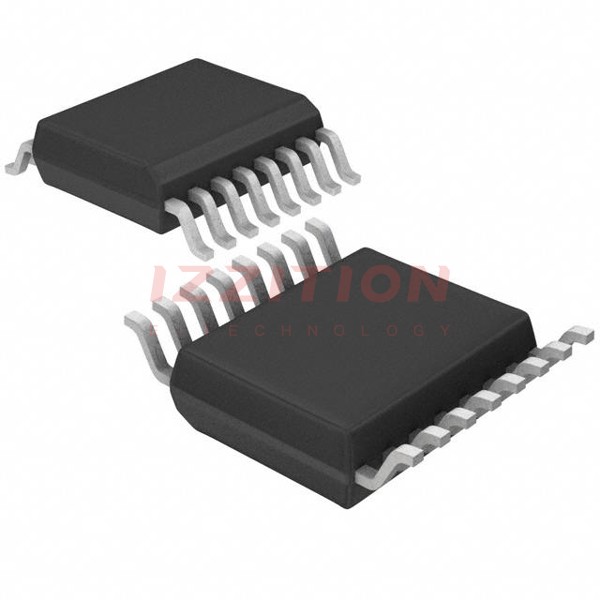

The AD5328ARU-REEL7 is a high-performance, 12-bit, octal digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is designed to provide precise analog output signals from digital inputs, making it suitable for a variety of applications that require multiple analog outputs. The device features an integrated buffer and is packaged in a 16-lead Thin Shrink Small Outline Package (TSSOP), which is compact and thermally efficient.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Number of Channels | 8 |
| Package Type | 16-Lead TSSOP |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage | 2.7V to 5.5V |
| Interface | SPI-compatible serial interface |
| Output Buffer | Integrated buffer |
Key Features
- High accuracy and linearity with 12-bit resolution
- Octal DAC configuration, providing eight independent analog output channels
- Integrated output buffer for each channel
- SPI-compatible serial interface for easy communication with microcontrollers
- Compact 16-lead TSSOP package
- Wide operating temperature range from -40°C to +125°C
Applications
The AD5328ARU-REEL7 is versatile and can be used in various applications, including:
- Industrial control systems requiring multiple analog outputs
- Medical devices such as patient monitoring systems and diagnostic equipment
- Aerospace and defense systems where high reliability and precision are critical
- Automotive systems, including infotainment and safety systems
- Test and measurement equipment
Q & A
- What is the resolution of the AD5328ARU-REEL7 DAC?
The AD5328ARU-REEL7 has a 12-bit resolution. - How many analog output channels does the AD5328ARU-REEL7 have?
The AD5328ARU-REEL7 has eight independent analog output channels. - What is the package type of the AD5328ARU-REEL7?
The AD5328ARU-REEL7 is packaged in a 16-lead Thin Shrink Small Outline Package (TSSOP). - What is the operating temperature range of the AD5328ARU-REEL7?
The operating temperature range is from -40°C to +125°C. - Does the AD5328ARU-REEL7 have an integrated output buffer?
Yes, the AD5328ARU-REEL7 has an integrated output buffer for each channel. - What type of interface does the AD5328ARU-REEL7 use?
The AD5328ARU-REEL7 uses an SPI-compatible serial interface. - What is the supply voltage range for the AD5328ARU-REEL7?
The supply voltage range is from 2.7V to 5.5V. - Where can I find the datasheet for the AD5328ARU-REEL7?
The datasheet can be found on the official Analog Devices website or through various electronic component distributors. - What are some common applications for the AD5328ARU-REEL7?
Common applications include industrial control systems, medical devices, aerospace and defense systems, automotive systems, and test and measurement equipment. - How many distributors offer the AD5328ARU-REEL7?
Multiple distributors offer the AD5328ARU-REEL7, including Easybom, SZ Components, and JAK Electronics.
