Overview

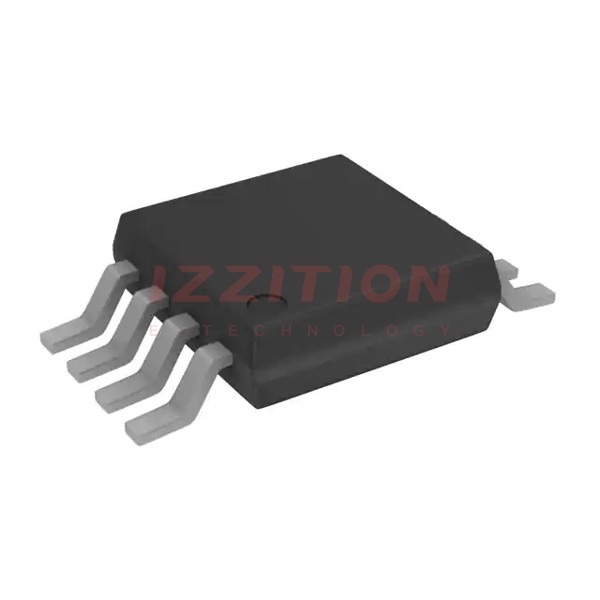

The AD5300BRM-REEL is a high-performance, 8-bit digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is designed to operate within a wide voltage range of 2.7 V to 5.5 V and features a rail-to-rail output. It is packaged in an 8-MSOP (Micro Small Outline Package) and is known for its low power consumption and compact size, making it suitable for a variety of applications in modern electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Range | 2.7 V to 5.5 V |
| Resolution | 8-bit |
| Output Type | Rail-to-Rail |
| Power Consumption | 140 μA (typical) |
| Operating Temperature | –40°C to +105°C |
| Package Type | 8-MSOP |
Key Features
- Low power consumption: 140 μA typical, making it energy-efficient for battery-powered devices.
- Rail-to-rail output: Ensures maximum signal range and flexibility.
- Wide operating voltage range: Compatible with a variety of power supply configurations.
- Compact 8-MSOP package: Ideal for space-constrained designs.
- High accuracy and linearity: Suitable for precision applications.
Applications
The AD5300BRM-REEL is versatile and can be used in various applications, including:
- Portable electronics: Due to its low power consumption, it is ideal for battery-powered devices such as handheld instruments and mobile phones.
- Industrial control systems: Its precision and reliability make it suitable for industrial automation and control systems.
- Medical devices: The component's accuracy and compact size make it a good fit for medical equipment and diagnostic tools.
- Aerospace and defense: Its wide operating temperature range and reliability are beneficial in aerospace and defense applications.
Q & A
- What is the voltage range of the AD5300BRM-REEL?
The AD5300BRM-REEL operates within a voltage range of 2.7 V to 5.5 V. - What is the resolution of the AD5300BRM-REEL?
The AD5300BRM-REEL has an 8-bit resolution. - What type of output does the AD5300BRM-REEL have?
The AD5300BRM-REEL features a rail-to-rail output. - How much power does the AD5300BRM-REEL consume?
The AD5300BRM-REEL consumes approximately 140 μA of power. - What is the operating temperature range of the AD5300BRM-REEL?
The operating temperature range is –40°C to +105°C. - What package type is the AD5300BRM-REEL available in?
The AD5300BRM-REEL is available in an 8-MSOP package. - Is the AD5300BRM-REEL suitable for portable electronics?
Yes, due to its low power consumption, it is suitable for portable electronics. - Can the AD5300BRM-REEL be used in industrial control systems?
Yes, its precision and reliability make it suitable for industrial control systems. - Is the AD5300BRM-REEL used in medical devices?
Yes, its accuracy and compact size make it a good fit for medical devices. - What are some other applications of the AD5300BRM-REEL?
It can also be used in aerospace and defense applications due to its wide operating temperature range and reliability.
