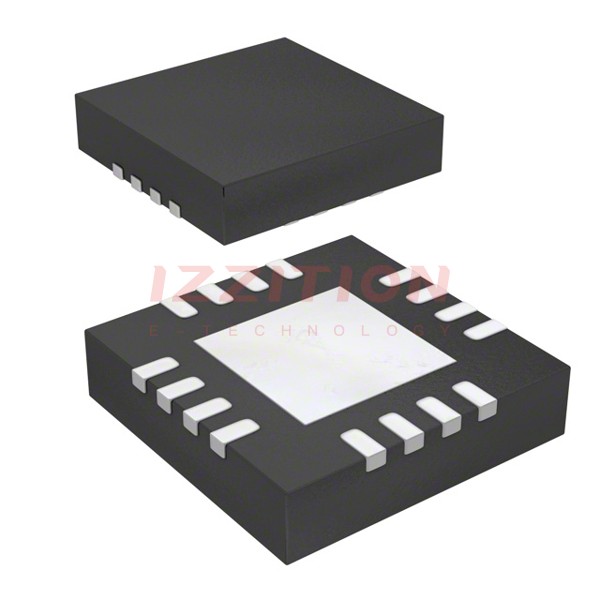

Analog Devices Inc. AD4680BCPZ-RL7

Manufacturer No:
AD4680BCPZ-RL7
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Description:
IC ADC 16BIT SAR 16LFCSP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AD4680BCPZ-RL7 is a high-performance, dual-channel, 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed to offer high accuracy and low power consumption, making it suitable for a variety of applications requiring precise analog-to-digital conversion.

The AD4680 features on-chip oversampling blocks to enhance performance, and it includes rolling average oversampling mode and power-down options to save power between conversions. The device is configured via a standard serial interface and operates with two independent supplies for the analog circuitry and digital interface.

Key Specifications

Parameter Value
Resolution 16 bits
Number of Channels 2
Conversion Rate Up to 1 MSPS
Signal-to-Noise-and-Distortion (SINAD) Ratio 90 dB to 92.5 dB (VREF = 3.3 V external)
Analog Input Voltage Range −VREF to +VREF
Common-Mode Input Range 0.2 to VREF − 0.2 V
Analog Input Common-Mode Rejection Ratio (CMRR) −75 dB (fIN = 500 kHz)
Input Bandwidth 6 MHz at −0.1 dB, 25 MHz at −3 dB
Aperture Delay 2 ns
Aperture Jitter 20 ps
Operating Temperature Range −40°C to +125°C
Package Type 16-Lead LFCSP (3mm x 3mm x 0.75mm)

Key Features

  • High-resolution 16-bit SAR ADC with dual channels for simultaneous sampling.
  • On-chip oversampling blocks to improve performance.
  • Rolling average oversampling mode and power-down options for power saving.
  • Internal reference voltage (2.5 V) with the option to use an external reference (2.5 V to 3.3 V).
  • Low power consumption with independent analog and digital supply voltages (VCC and VLOGIC).
  • High input bandwidth and low aperture delay and jitter.
  • Standard serial interface for configuration.
  • Internal LDO regulator providing a 1.9 V supply for internal use.

Applications

  • Industrial automation and control systems.
  • Medical devices requiring high accuracy and low power consumption.
  • Aerospace and defense applications where precision and reliability are critical.
  • Automotive systems, including advanced driver-assistance systems (ADAS).
  • Test and measurement equipment.
  • High-performance data acquisition systems.

Q & A

  1. What is the resolution of the AD4680BCPZ-RL7 ADC?

    The AD4680BCPZ-RL7 has a resolution of 16 bits.

  2. How many channels does the AD4680BCPZ-RL7 support?

    The AD4680BCPZ-RL7 supports two channels for simultaneous sampling.

  3. What is the maximum conversion rate of the AD4680BCPZ-RL7?

    The maximum conversion rate of the AD4680BCPZ-RL7 is up to 1 MSPS.

  4. What is the signal-to-noise-and-distortion (SINAD) ratio of the AD4680BCPZ-RL7?

    The SINAD ratio of the AD4680BCPZ-RL7 is between 90 dB to 92.5 dB with an external 3.3 V reference voltage.

  5. What is the operating temperature range of the AD4680BCPZ-RL7?

    The operating temperature range of the AD4680BCPZ-RL7 is −40°C to +125°C.

  6. What package type does the AD4680BCPZ-RL7 come in?

    The AD4680BCPZ-RL7 comes in a 16-Lead LFCSP (3mm x 3mm x 0.75mm) package.

  7. Does the AD4680BCPZ-RL7 have an internal reference voltage?

    Yes, the AD4680BCPZ-RL7 has an internal reference voltage of 2.5 V, but it also supports an external reference voltage ranging from 2.5 V to 3.3 V.

  8. How does the AD4680BCPZ-RL7 manage power consumption?

    The AD4680BCPZ-RL7 manages power consumption through power-down options and rolling average oversampling mode.

  9. What is the input bandwidth of the AD4680BCPZ-RL7?

    The input bandwidth of the AD4680BCPZ-RL7 is 6 MHz at −0.1 dB and 25 MHz at −3 dB.

  10. Does the AD4680BCPZ-RL7 have any internal voltage regulation?

    Yes, the AD4680BCPZ-RL7 has an internal LDO regulator that provides a 1.9 V supply for internal use.

Product Attributes

Number of Bits:16
Sampling Rate (Per Second):1M
Number of Inputs:2
Input Type:Differential
Data Interface:Serial
Configuration:ADC
Ratio - S/H:ADC:0:2
Number of A/D Converters:2
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:3V ~ 3.6V
Voltage - Supply, Digital:1.65V ~ 3.6V
Features:Simultaneous Sampling
Operating Temperature:-40°C ~ 125°C
Package / Case:16-WFQFN Exposed Pad, CSP
Supplier Device Package:16-LFCSP (3x3)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$22.24
23

Please send RFQ , we will respond immediately.
