Overview
The AD45048ARZ is a rail-to-rail upstream ADSL (Asymmetric Digital Subscriber Line) line driver produced by Analog Devices Inc. This integrated circuit is designed to meet the stringent requirements of ADSL applications, offering high performance and reliability. Although the product is no longer in manufacturing, it remains relevant for existing systems and can be sourced from various distributors.
Key Specifications
| Parameter | Value |
|---|---|
| Amplifier Case Style | SOIC (Small Outline Integrated Circuit) |
| Amplifier Type | Operational |
| Bandwidth | 65 MHz |
| Gain Bandwidth | 65 MHz |
| Operating Temperature Range | -40°C to +85°C |

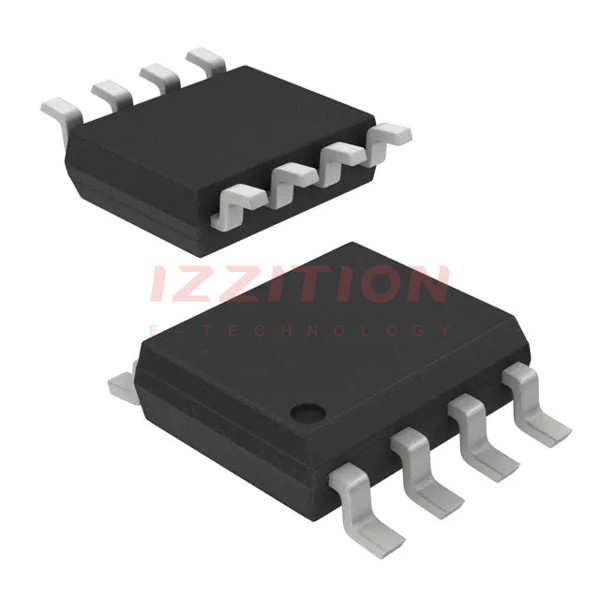

| Package Type | 8-Lead Standard Small Outline Package |
Key Features
- Rail-to-rail output swing, enabling the driver to operate with a wide range of supply voltages.
- High bandwidth of 65 MHz, suitable for high-speed data transmission in ADSL applications.
- Low distortion and high linearity, ensuring high-quality signal transmission.
- Compact 8-lead SOIC package, ideal for space-constrained designs.
Applications
The AD45048ARZ is primarily used in upstream ADSL line driver applications. It is suitable for various telecommunications and networking equipment where high-speed data transmission and signal integrity are crucial. Other potential applications include broadband access equipment, DSL modems, and other communication systems requiring high-performance line drivers.
Q & A
- What is the primary application of the AD45048ARZ? The AD45048ARZ is primarily used in upstream ADSL line driver applications.
- What is the bandwidth of the AD45048ARZ? The bandwidth of the AD45048ARZ is 65 MHz.
- What is the operating temperature range of the AD45048ARZ? The operating temperature range is -40°C to +85°C.
- What type of package does the AD45048ARZ come in? The AD45048ARZ comes in an 8-lead Standard Small Outline Package (SOIC).
- Is the AD45048ARZ still in production? No, the AD45048ARZ is no longer in production but can be sourced from various distributors.
- What are the key features of the AD45048ARZ? Key features include rail-to-rail output swing, high bandwidth, low distortion, and a compact SOIC package.
- Where can I find detailed specifications for the AD45048ARZ? Detailed specifications can be found in the datasheet available on Analog Devices' official website and other electronic component distributors.
- What are some potential applications of the AD45048ARZ besides ADSL? Besides ADSL, potential applications include broadband access equipment, DSL modems, and other communication systems requiring high-performance line drivers.
- How does the AD45048ARZ ensure signal integrity? The AD45048ARZ ensures signal integrity through its high bandwidth, low distortion, and high linearity.
- Can I still purchase the AD45048ARZ if it is no longer in production? Yes, you can still purchase the AD45048ARZ from various distributors and suppliers who may have stock or offer substitutes.
