Overview

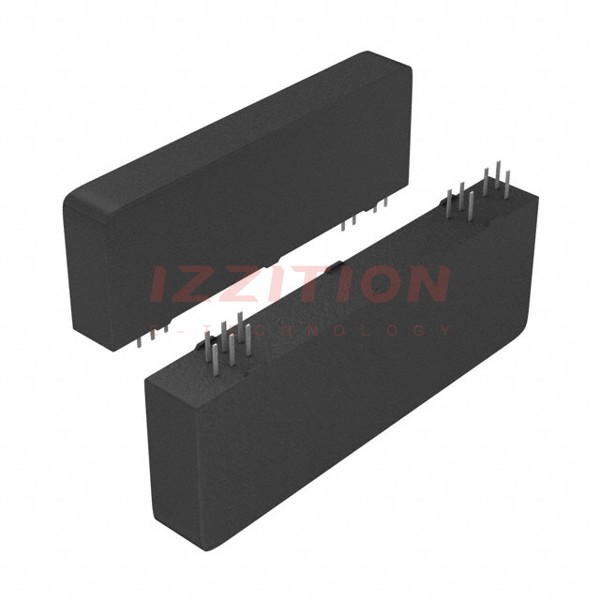

The AD215AY, produced by Analog Devices Inc., is a high-speed input isolation amplifier designed to isolate and amplify wide bandwidth analog signals. This device ensures complete galvanic isolation between the input and output, including user-available front-end isolated power supplies. It is particularly useful in applications requiring high common-mode voltage (CMV) protection and fast analog signal measurement. The AD215AY operates over an extended industrial temperature range of –40°C to +85°C, making it suitable for various industrial environments.
Key Specifications
| Parameter | Value | Units |
|---|---|---|
| Bandwidth | 120 kHz | |
| Common-Mode Voltage Protection | 750 V rms | |
| Slew Rate | 6 V/μs | |
| Settling Time | 9 μs (to ±0.10% of ±10 V output swing) | |
| Harmonic Distortion | –80 dB @ 1 kHz | |
| Nonlinearity | ±0.005% (typical @ +25°C, G = 1 V/V) | |
| Input/Output Range | ±10 V | |
| Gain Range | 1 V/V to 10 V/V | |
| Isolated Power Supply | ±15 V dc @ ±10 mA | |
| Temperature Range | –40°C to +85°C |
Key Features
- High-speed dynamic characteristics with a bandwidth of 120 kHz and a slew rate of 6 V/μs.
- Excellent common-mode performance with 750 V rms common-mode voltage protection and a common-mode rejection ratio of 105 dB.
- Low harmonic distortion and nonlinearity, ensuring high signal integrity.
- Buffered output stage with offset trim to drive low impedance loads.
- Integrated isolated power supply providing ±15 V dc @ ±10 mA, eliminating the need for a separate dc/dc converter.
- Flexible input and output stages, including an uncommitted op-amp for input buffering or amplification.
Applications
- High-speed data acquisition systems.
- Power line and transient monitors.
- Multichannel muxed input isolation.
- Waveform recording and instrumentation.
- Power supply controls.
- Vibration analysis.
Q & A
- What is the bandwidth of the AD215AY?
The AD215AY has a bandwidth of 120 kHz. - What is the common-mode voltage protection of the AD215AY?
The AD215AY provides 750 V rms common-mode voltage protection. - What is the slew rate of the AD215AY?
The slew rate of the AD215AY is 6 V/μs. - What is the settling time of the AD215AY?
The settling time is 9 μs to ±0.10% of ±10 V output swing. - What is the harmonic distortion of the AD215AY at 1 kHz?
The harmonic distortion is typically –80 dB at 1 kHz. - What is the nonlinearity of the AD215AY?
The nonlinearity is typically ±0.005% at +25°C, G = 1 V/V. - What is the input/output range of the AD215AY?
The input/output range is ±10 V. - What is the gain range of the AD215AY?
The gain range is from 1 V/V to 10 V/V. - Does the AD215AY have an integrated isolated power supply?
Yes, the AD215AY has an integrated isolated power supply providing ±15 V dc @ ±10 mA. - What is the operating temperature range of the AD215AY?
The operating temperature range is –40°C to +85°C.
